Adding RO/NF/ROSC icon into the WAVE Home Window

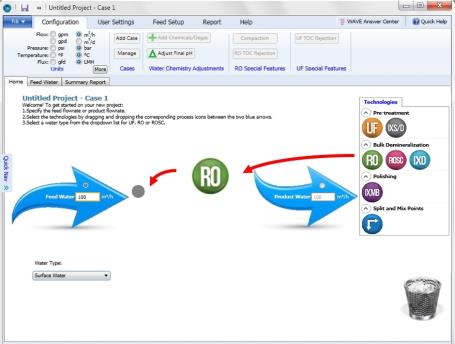

The RO Symbol can be dragged and dropped on top of the gray spot to specify an RO/NF process as shown in Figure 1. The same applies for the ROSC. If the gray spot is not visible, simply dragging the RO icon between the two large blue arrows will make the gray spot visible.

Figure 116. Dragging and dropping RO icon

Figure 1: Dragging and dropping RO icon

RO stands for Reverse Osmosis. With this option 8 inch elements designs can be performed
ROSC stands for Reverse Osmosis Small Commercial. Wwith this option 4 inch and smaller elements designs can be performed
NF stands for Nanofiltration. With this option different sizes NF elements designs can be performed

Notes:

WAVE does not allow the inclusion of both RO and ROSC in the same system design.
WAVE allows only one of RO or ROSC in a system design.
