Coagulant Addition to the UF Feed

This is done by following the steps (as shown in Figure 1):

  1. Click on the “Add Chemicals/Degas” button. The Chemical Adjustment Popup Window will appear.
  2. Click on the “Coagulant” button to enable oxidant addition. A coagulant addition line (named “COAGULANT”) would automatically appear in the UF System Diagram.
  3. Click on the dropdown arrow and select a coagulant. The selected coagulant, along with its
    concentration in the COAGULANT stream, would be shown in the UF System Diagram.
  4. Specify the target concentration of the coagulant in the UF feed stream. The target concentration of the coagulant in the UF stream is displayed in the UF System diagram.

  5. Click “OK”.

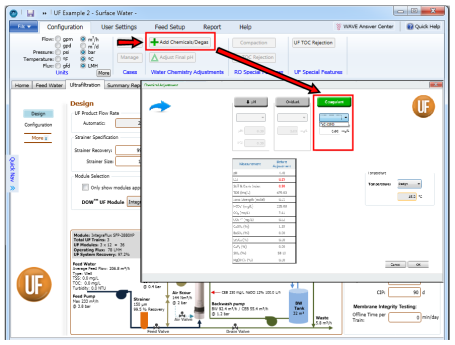

    Figure 1: Specification of Coagulant addition for UF in WAVE

Notes:

  • The coagulant is selected from the list defined by the user as shown in Sections Chemical Library and Adding a New Chemical.
  • The user can add a coagulant from any of the UF windows by clicking on the “Add Chemical/Degas” option.
