Detailed Ionic Content

The amount of each dissolved component can be specified. . The suggested order is:

1. From the Feed Water tab, select the water type.
2. Enter the solid content properties (NTU, TSS, SDI) and the organic content (TOC).
3. Enter the temperature values and pH.

4. Enter the cations, anions and neutrals.

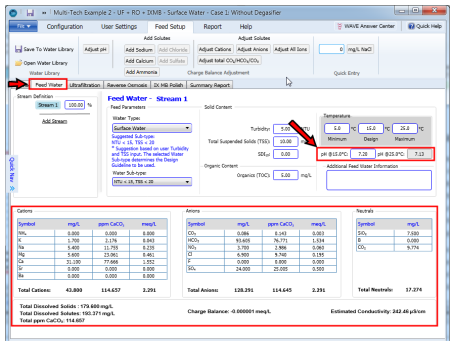

   Figure 1: Detailed entry of the ionic feed composition

Notes:

• WAVE limits the minimum temperature to 0°C and the maximum temperature to 100°C. Warnings will be generated in the Feed Water temperature entry fields based on the water treatment options that were selected.
• Populating the HCO3/CO3 field automatically populates the HCO3/CO3/CO2 fields.
• The definition of TDS depends on the water treatment option. In RO, TDS refers to “Total Dissolved Solids” and excludes dissolved CO2. In the IX modules, TDS refers to “Total Dissolved Solutes” and includes dissolved CO2.
