Recommended Configurations

The recommended Configurations table is populated based on the flux, cycle duration and module selection (and DUPONT™ Ultrafiltration – General Design Guidelines).

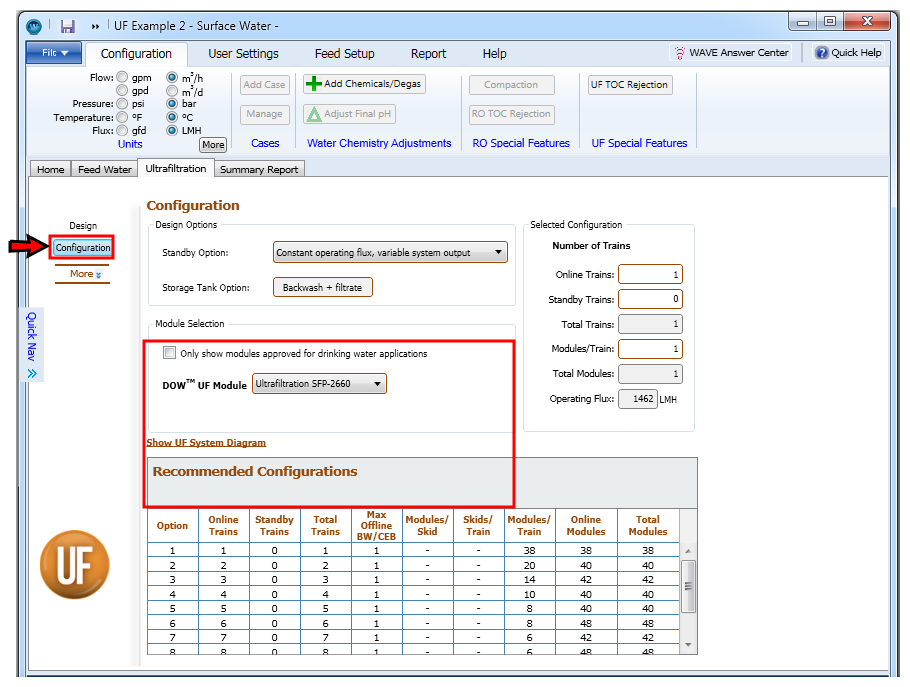

Figure 1: Recommended Configuration Table in UF for non-IntegraPac™

It describes the system design as shown below. Modules/Skid and Skids/Train options can be edited for IntegraPac™ systems.

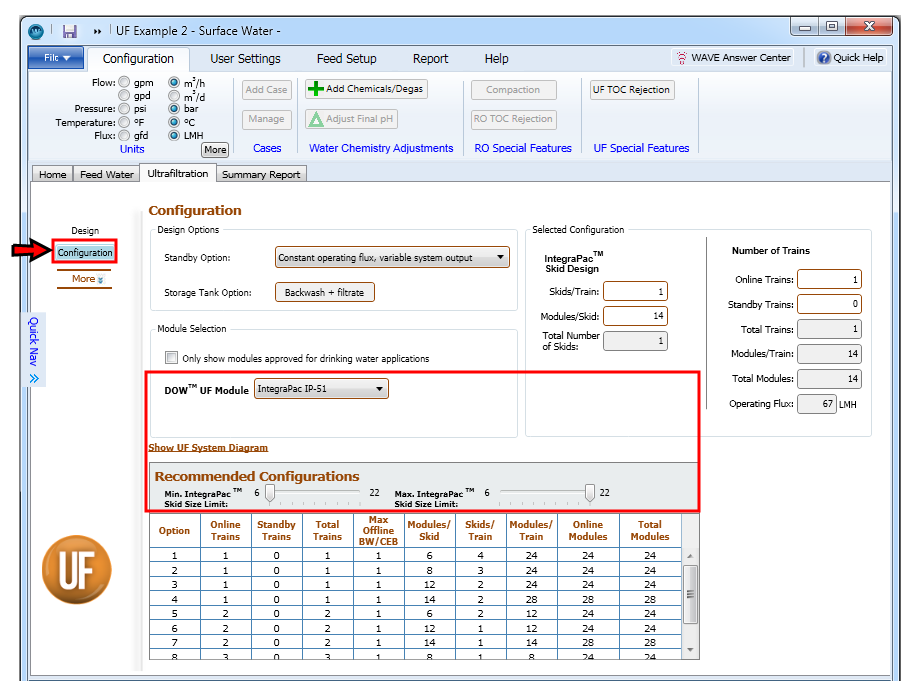

Figure 2: Configuration Table in UF for IntegraPac™

Design options that include the number of Modules/Skid and Skids/Train are supplied by WAVE for IntegraPac™ systems.

Note: By default, WAVE calculated the number of modules per train based on the flux and duration recommendations.
