The Number of Stages

One can specify up to 5 stages for each pass. By default WAVE assigns a single stage per pass. The number of stages can be specified for each pass as shown below in Figure 1:

1. Click on the Pass of interest (Pass 1 or Pass 2)

2. Update the Number of Stages. Note the change in the Process Flow Diagram and Table.

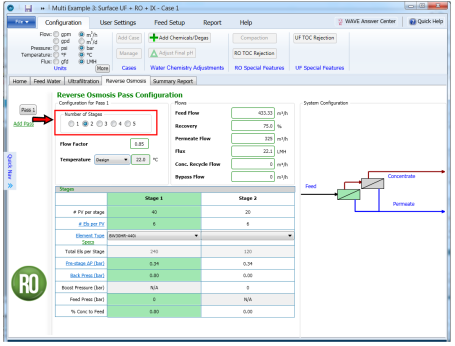

   Figure 1: Specification of the Number of Stages in WAVE

Note:  WAVE users can click on each box corresponding to a stage in the RO/NF/ROSC Process Flow Diagram and the corresponding column in the table would be highlighted. By default, the 1st element (thus the 1st column in the table) is highlighted.

Additional Information : Select the Number of Stages
