UF Module Selection

The UF module of interest can be selected from the Design Window. Once the module is selected, the table of Recommended Configurations would be updated.

Drinking water modules are included in the list once the ¨Include drinking water modules¨ box is checked.

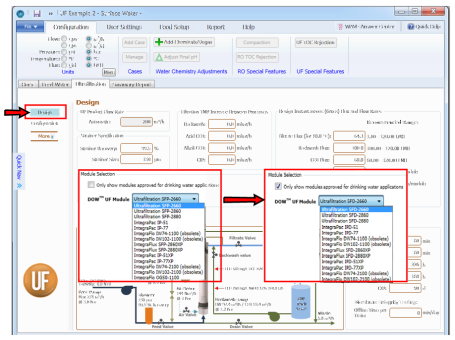

Figure 1: How to select a UF module type

IntegraPac™ Ultrafiltration Skids

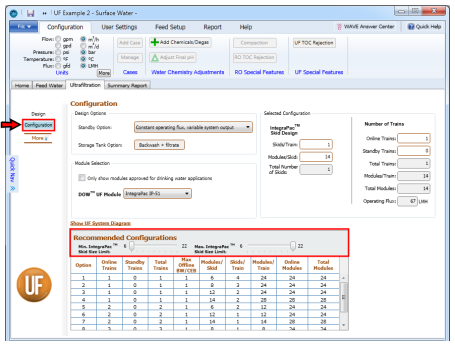

A subset of the DW&PS product offerings are the IntegraPac™ products. Sliders depicting the minimum and maximum Skid Sizes would be displayed on the Recommended Configurations table that can be found in the ¨Configuration¨ tab.

Note:  WAVE may allow the user to set the Min IntegraPac™ Ultrafiltration Skid Size Limit to be larger than the Maximum IntegraPac™ Skid Size Limit; however, the Recommended Configurations Table would be empty.

If the user enters a number of modules per skid higher than the maximum IntegraPac™ skid size limit (22), a warning message will appear.

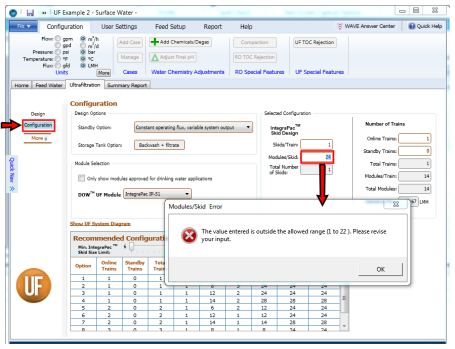

Figure 3: Warning message if the number of IntegraPac™ modules is exceeded
