Units of Measure
The WAVE user can switch between different units of measure. The steps are:
-

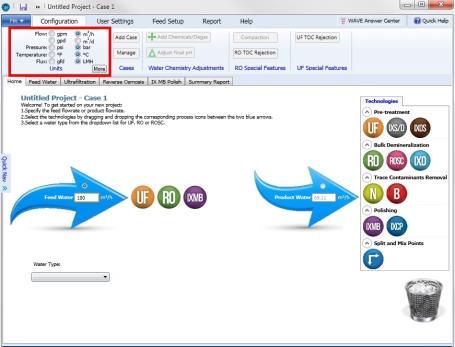

Click on “Configuration” in the top ribbon
Figure 1: Selection of Configuration to specify Units of Measure
- Switch units as needed by clicking on the radio buttons
-

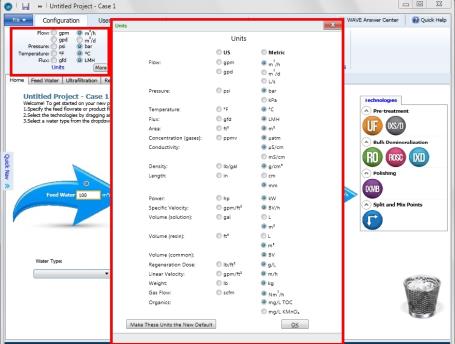

Click on the ¨More¨ button at the bottom right corner of the box to expand the list of units
Figure 2: Selection of Configuration to specify Units of Measure
- Select the appropriate units and click “OK”.
Notes:
- Users can make the selection the new default by clicking on ¨Make These Units the New Default¨
- Users can switch between US and SI units by clicking on the radio buttons at the top
