Common Warnings

See Figure 1, cross referencing the common errors and related Flow Calculator input fields.

  1. Concentrate Flow Rate < Min. Limit
    • For CC Mode, simply increase Conc. Recycle flow per PV in the flow calculator (see Figure 1 input tag 3).
    • For PF Mode (Denoted as Cycle 1 to differentiate the warning from CC Mode), there are two levers in the flow calculator (see Figure 1 input tags 1&2), increase the Feed Ratio and/or decrease the Recovery.
  2. Element Recovery > Max. Limit
    • Decrease Conc. Recycle flow per PV in the flow calculator (see Figure 1 input tag 3). This will decrease the CC recovery which will subsequently decrease the element recovery. s

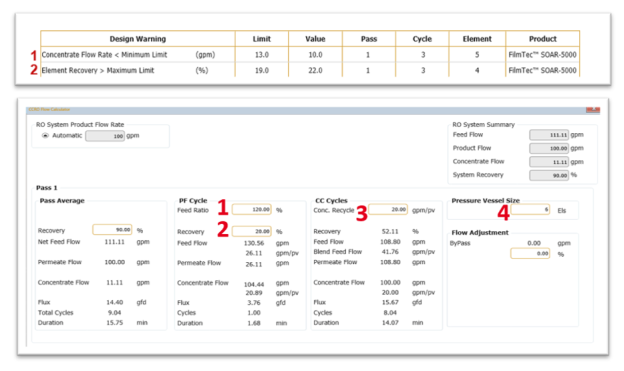

Figure 1: Common Warnings
