Adding IX Process Icons into the WAVE Home Window

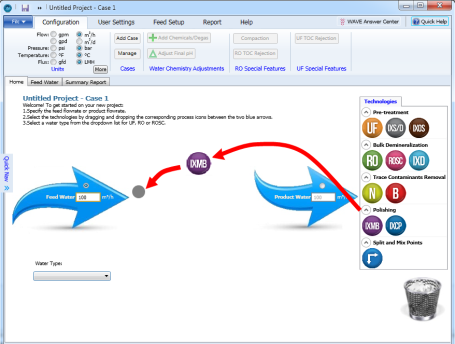

The relevant IX icon can be dragged and dropped on top of the gray spot to specify a specific IX process (e.g. IXS/D, IXD, IXMB) as shown in Figure 1. If the gray spot is not visible, simply dragging the relevant IX icon between the two large blue arrows will make the gray spot visible.
WAVE provides the following IX process options:
- IXS/D = Ion Exchange Softening/Dealkalization
- IXOS = Ion Exchange Organic Scavenging
- IXD = Ion Exchange Demineralization
- N = Nitrate Removal
- B = Boron Removal
- IXMB = Ion Exchange Mixed Bed
- IXCP = Ion Exchange Condensate Polishing
Notes:
- WAVE will only allow the IX icons associated with Pretreatment to be placed upstream of any WAVE icons (IX or otherwise) associated with Bulk Demineralization, Trace Contaminant Removal or Polishing.
- WAVE will only allow the IX icons associated with Bulk Demineralization to be placed upstream of any WAVE icons (IX or otherwise) associated with Trace Contaminant Removal or Polishing but downstream of the WAVE icons (IX or otherwise) associated with Pretreatment
- WAVE will only allow the IX icons associated with Trace Contaminant Removal to be placed upstream of any WAVE icons (IX or otherwise) associated with Polishing but downstream of the WAVE icons (IX or otherwise) associated with Pretreatment or Bulk Demineralization.
