Tyvek / DuPont™ ProShield® 10

PB125S BU

DuPont™ ProShield® 10

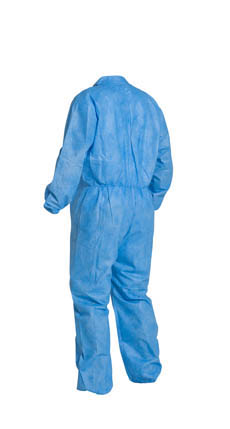

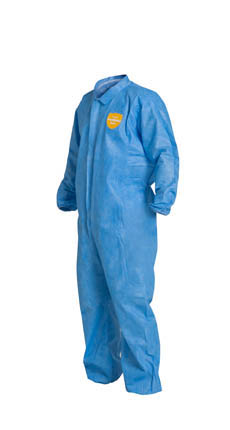

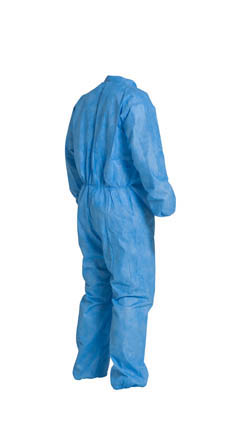

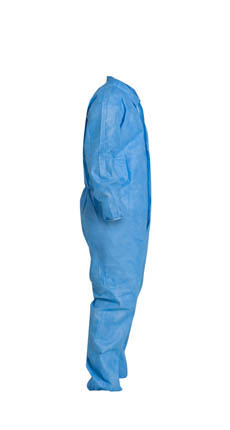

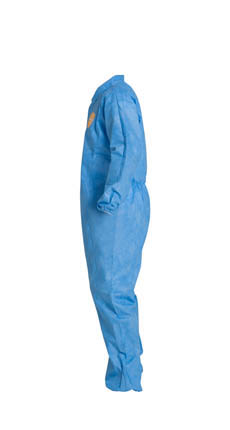

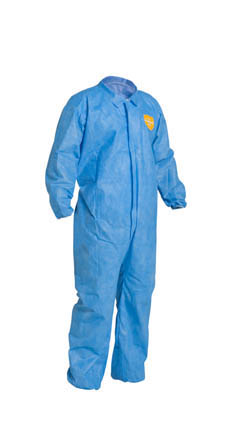

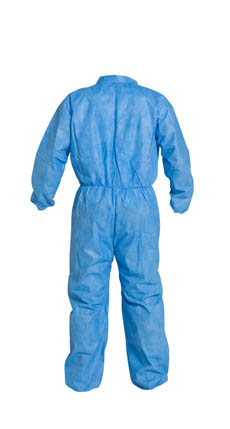

DuPont™ ProShield® 10 Coverall. Collar. Elastic Wrists and Ankles. Elastic Waist. Serged Seams. Pin Lock Slider Zipper Pull. Blue.




Hover over image to zoom
Name Description
Full Part Number PB125SBUxx0025yy (xx=size;yy=option code)  Help
Fabric/Materials PROSHIELD® 10
Design Coverall w/ Elastic Wrists and Ankles
Seam Serged
Color Blue
Quantity/Box 25 per case
Sizes SM, MD, LG, XL, 2X, 3X, 4X, 5X, 6X, 7X
Option Codes 00

FEATURES & PRODUCT DETAILS

  • Pin locking slider locks in place when the pins on the puller are pushed into the zipper elements
  • Laydown collar
  • Elastic opening for tighter fit at wrist
  • Elastic opening for tighter fit at ankle
  • Manufactured under specifications that do not contain natural rubber latex.

AVAILABLE OPTIONS

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

FABRIC & CHEMICAL RESISTANCE DATA

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Thickness ASTM D1117 12 mils
Basis Weight ASTM D3776 1.3 oz/yd2
Burst Strength - Mullen ASTM D3786 31 psi
Tear Resistance - Trap Tear (MD) ASTM D5587 4 lbf
Tear Resistance - Trap Tear (CD) ASTM D5587 7 lbf
Breaking Strength - Grab (MD) ASTM D5034 17 lbf
Breaking Strength - Grab (CD) ASTM D5034 14 lbf
Hydrostatic Head AATCC 127 25 inches H2O
Surface Resistivity (25°C / 55% RH) ASTM D257 1 x 10^9 ohms/square
Wearing Apparel Flammability 16 CFR 1610 Help Class 1

SPECIAL WARNINGS
