Tyvek / DuPont™ ProShield® 60

NG120S WH

DuPont™ ProShield® 60

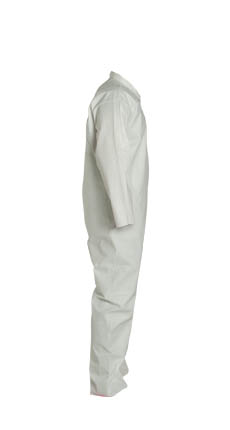

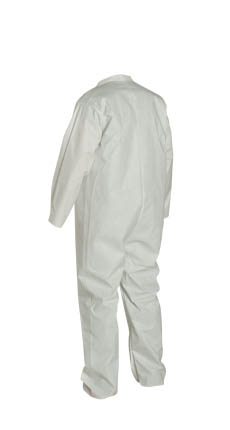

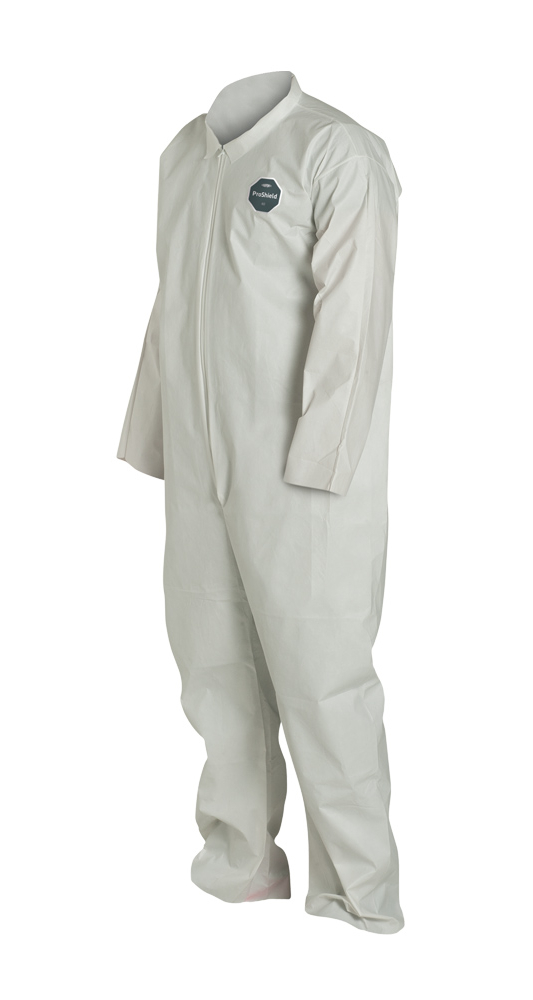

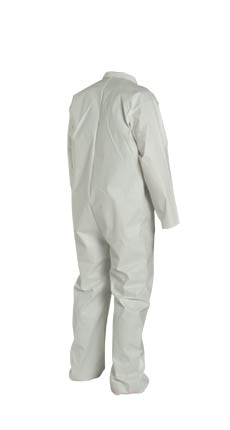

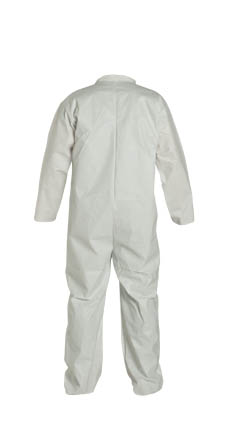

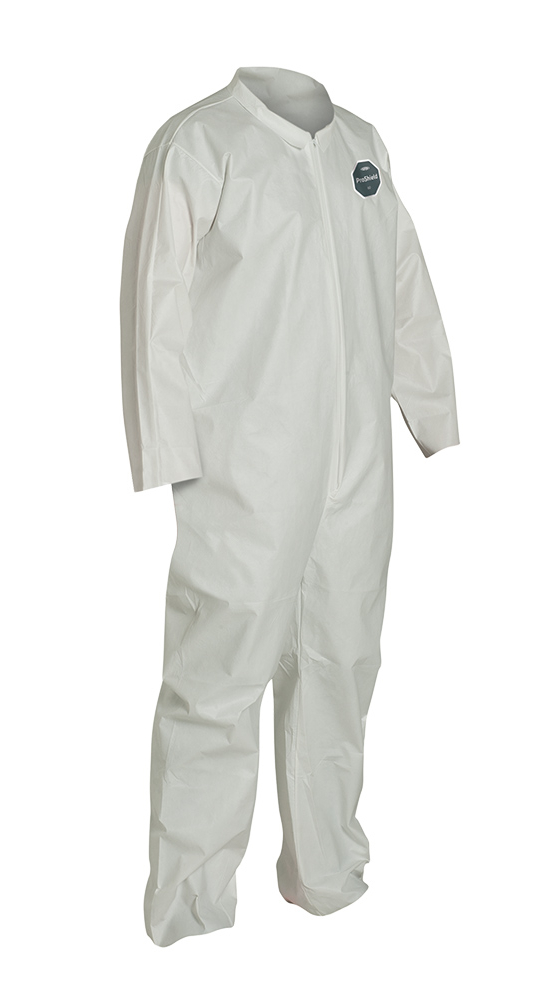

DuPont™ ProShield® 60 Coverall. Collar. Open Wrists and Ankles. Serged Seams. White.




Hover over image to zoom
Name Description
Full Part Number NG120SWHxx0025yy (xx=size;yy=option code)  Help
Fabric or Materials ProShield® 60
Design Coverall w/ Open Wrists and Ankles
Seam Serged
Color White
Quantity/Box 25 per case
Sizes SM, MD, LG, XL, 2X, 3X, 4X, 5X, 6X
Option Codes 00

FEATURES & PRODUCT DETAILS

ProShield® 60 garments are suitable for protection against non-hazardous particles, light liquid splash and aerosols in many industrial applications. ProShield® 60 garments are made with a microporous film that is laminated to a spundbonded polypropylene substrate. Applications include: automotive refinishing, waste cleanup, asbestos abatement, and hazardous remediation.

  • Laydown collar
  • Open wrists
  • Open ankles

AVAILABLE OPTIONS

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

FABRIC & CHEMICAL RESISTANCE DATA

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Thickness ASTM D751 10 mils
Basis Weight ASTM D751 1.8 oz/yd2
Tear Resistance - Trap Tear (MD) ASTM D1117 11 lbf
Tear Resistance - Trap Tear (CD) ASTM D1117 7 lbf
Breaking Strength - Grab (MD) ASTM D5034 23 lbf
Breaking Strength - Grab (CD) ASTM D5034 11 lbf
Hydrostatic Head AATCC 127 68 inches H2O
Surface Resistivity (25°C / 55& RH) ASTM D257 1.0 x 10^9 ohms/square
Wearing Apparel Flammability 16 CFR 1610 <a class="helpImg" data-toggle="fabPhyProp" href="#."><img src="/content/dam/dupont/amer/us/en/personal-protection/public/images/products/question_icon.png" alt="Help" title="Help"/></a> Class 1

SPECIAL WARNINGS
