Tyvek / DuPont™ ProShield® 60

NG122S WH

DuPont™ ProShield® 60

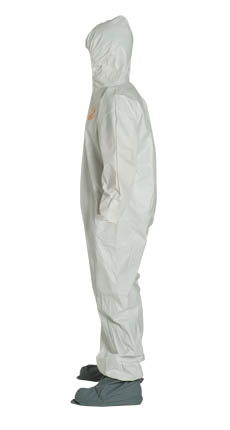

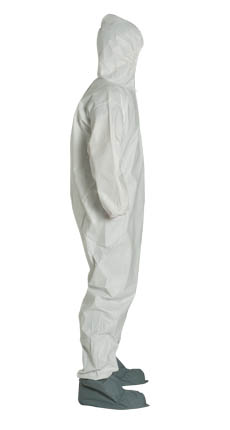

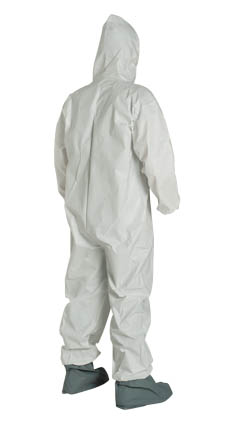

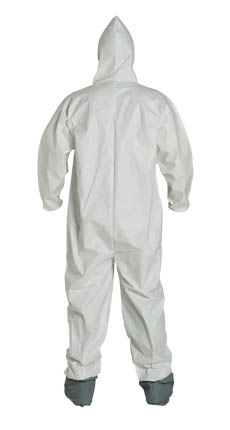

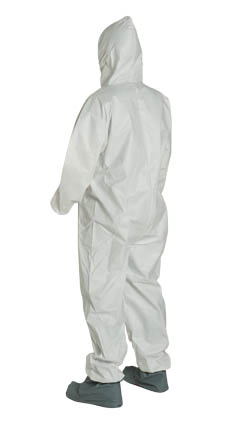

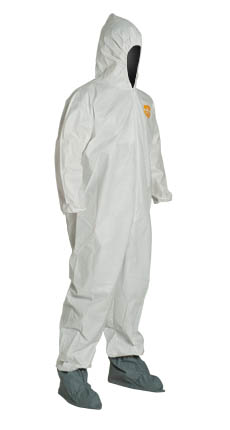

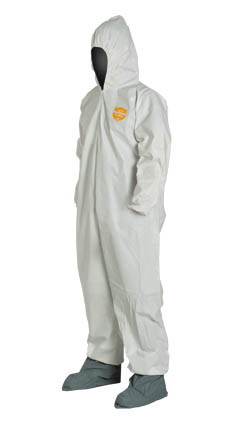

DuPont™ ProShield® 60 Coverall. Standard Fit Hood. Elastic Wrists. Attached Skid-Resistant Boots. Serged Seams. Pin Lock Slider Zipper Pull. White.




Hover over image to zoom
Name Description
Full Part Number NG122SWHxx0025yy (xx=size;yy=option code)  Help
Fabric/Materials PROSHIELD® 60
Design Coverall w/ Hood, Elastic Wrists, Att. Skid-Resistant Boots
Seam Serged
Color White
Quantity/Box 25 per case
Sizes SM, MD, LG, XL, 2X, 3X, 4X, 5X, 6X
Option Codes 00

FEATURES & PRODUCT DETAILS

  • Pin locking slider locks in place when the pins on the puller are pushed into the zipper elements
  • Attached hood with elastic around face opening.
  • Front zipper closure for easy donning and doffing.
  • Elastic opening for tighter fit at wrist
  • Attached ProShield® 3 boots have special coating to provide added skid-resistance
  • Manufactured under specifications that do not contain natural rubber latex.

AVAILABLE OPTIONS

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

FABRIC & CHEMICAL RESISTANCE DATA

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Thickness ASTM D751 10 mils
Basis Weight ASTM D751 1.8 oz/yd2
Tear Resistance - Trap Tear (MD) ASTM D1117 11 lbf
Tear Resistance - Trap Tear (CD) ASTM D1117 7 lbf
Breaking Strength - Grab (MD) ASTM D5034 23 lbf
Breaking Strength - Grab (CD) ASTM D5034 11 lbf
Hydrostatic Head AATCC 127 68 inches H2O
Surface Resistivity (25°C / 55% RH) ASTM D257 1.0 x 10^9 ohms/square
Wearing Apparel Flammability 16 CFR 1610 Help Class 1
