Tyvek / DuPont™ Tychem® 10000 FR

RF600T SV

DuPont™ Tychem® 10000 FR

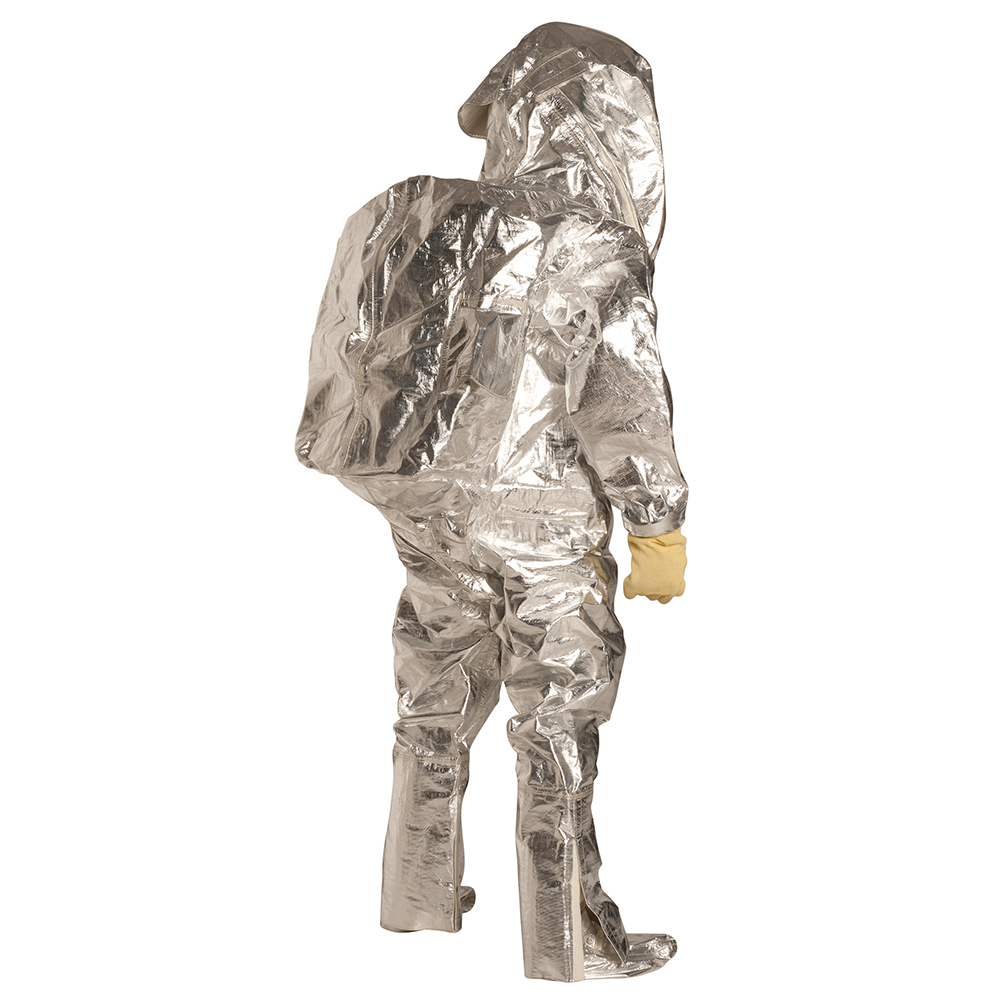

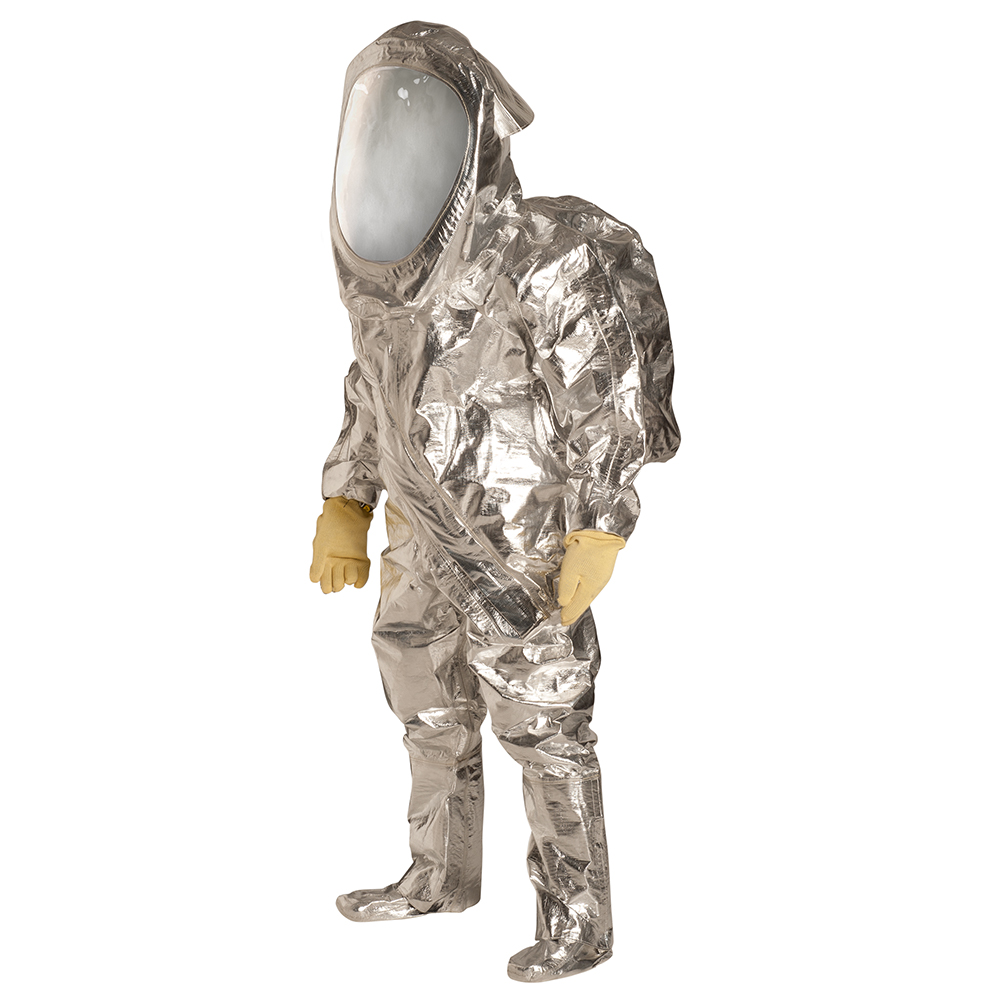

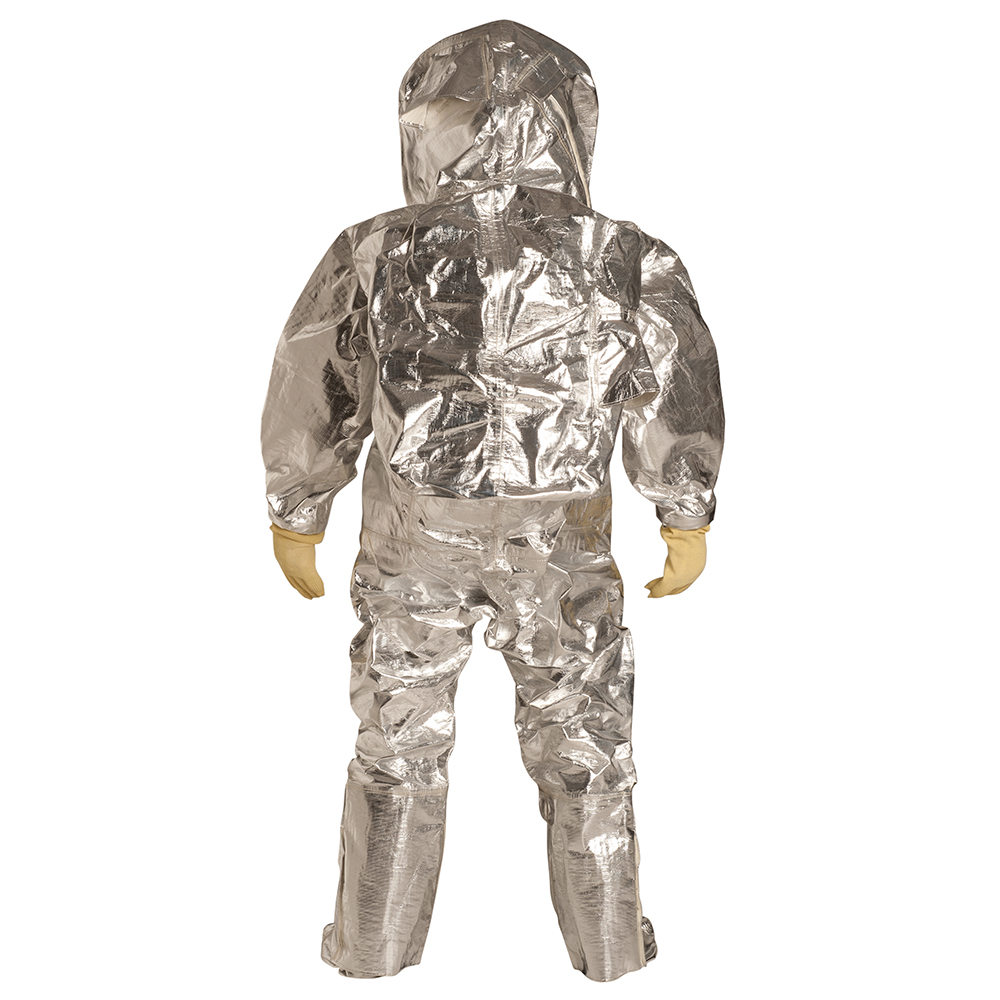

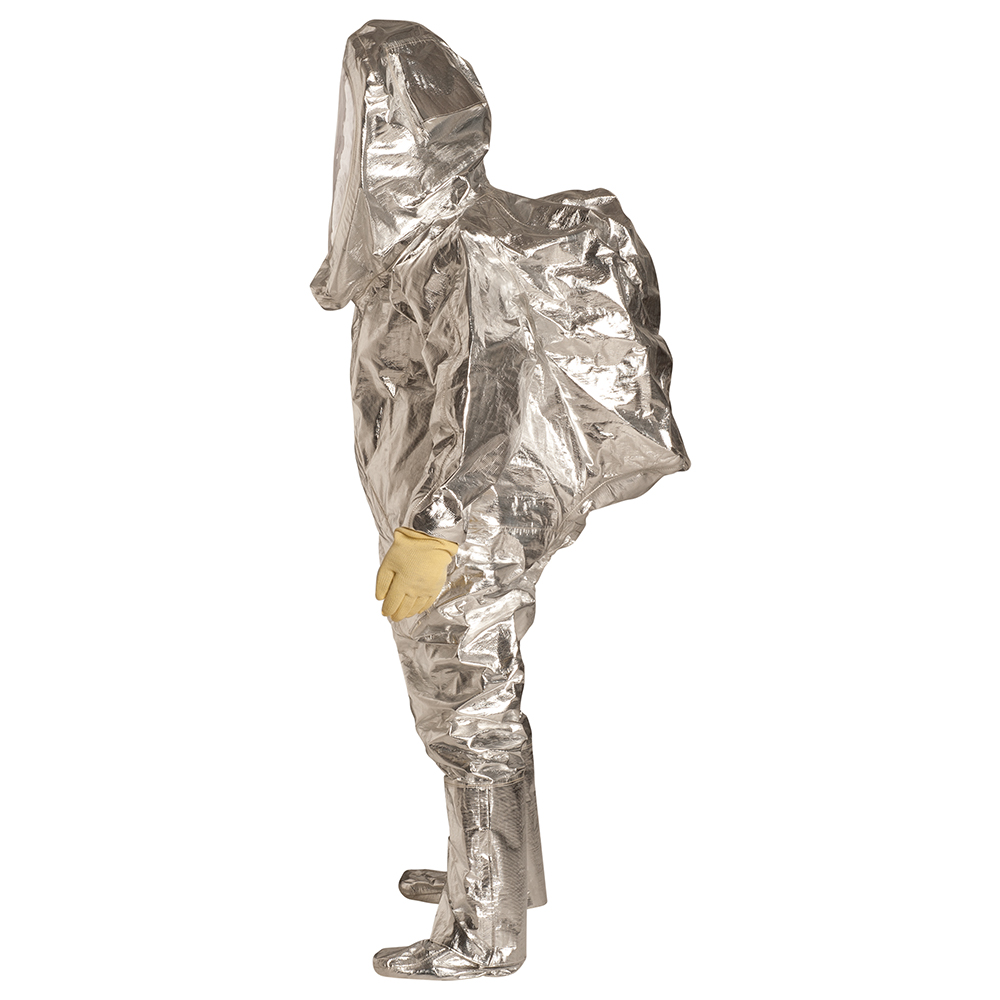

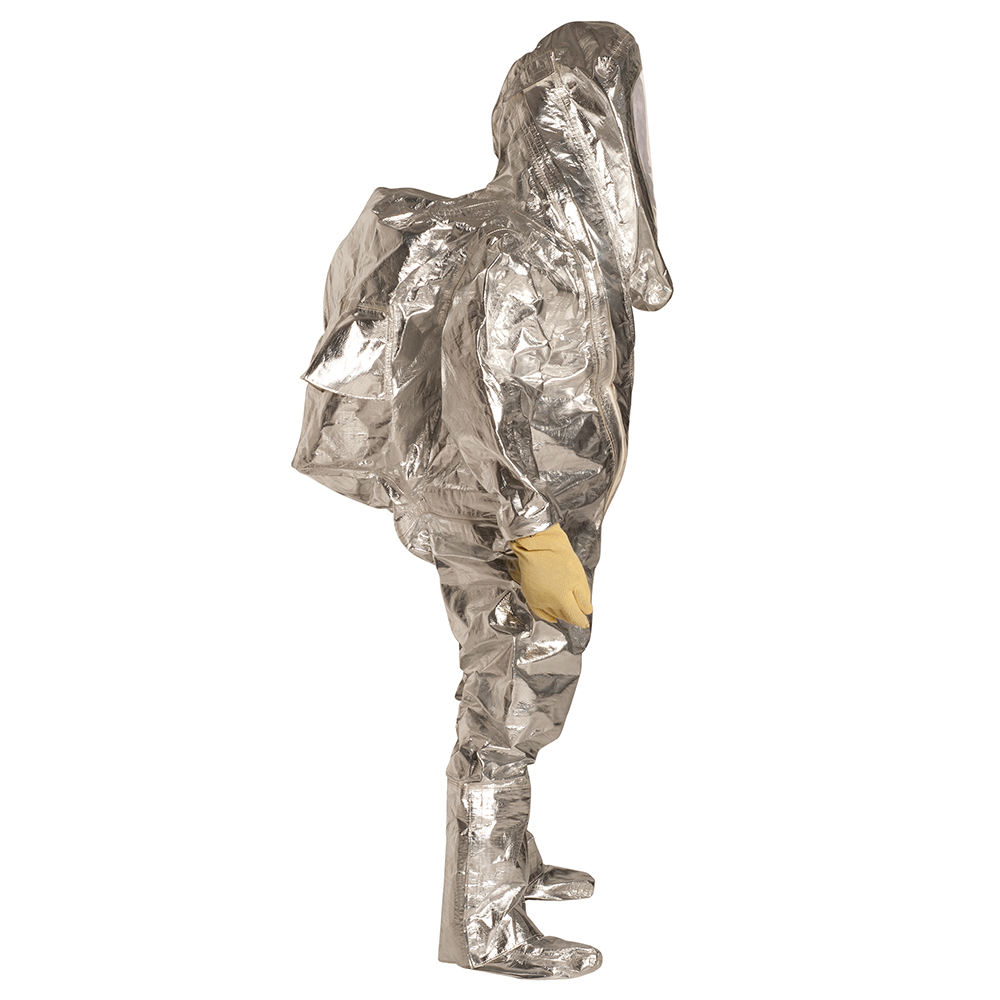

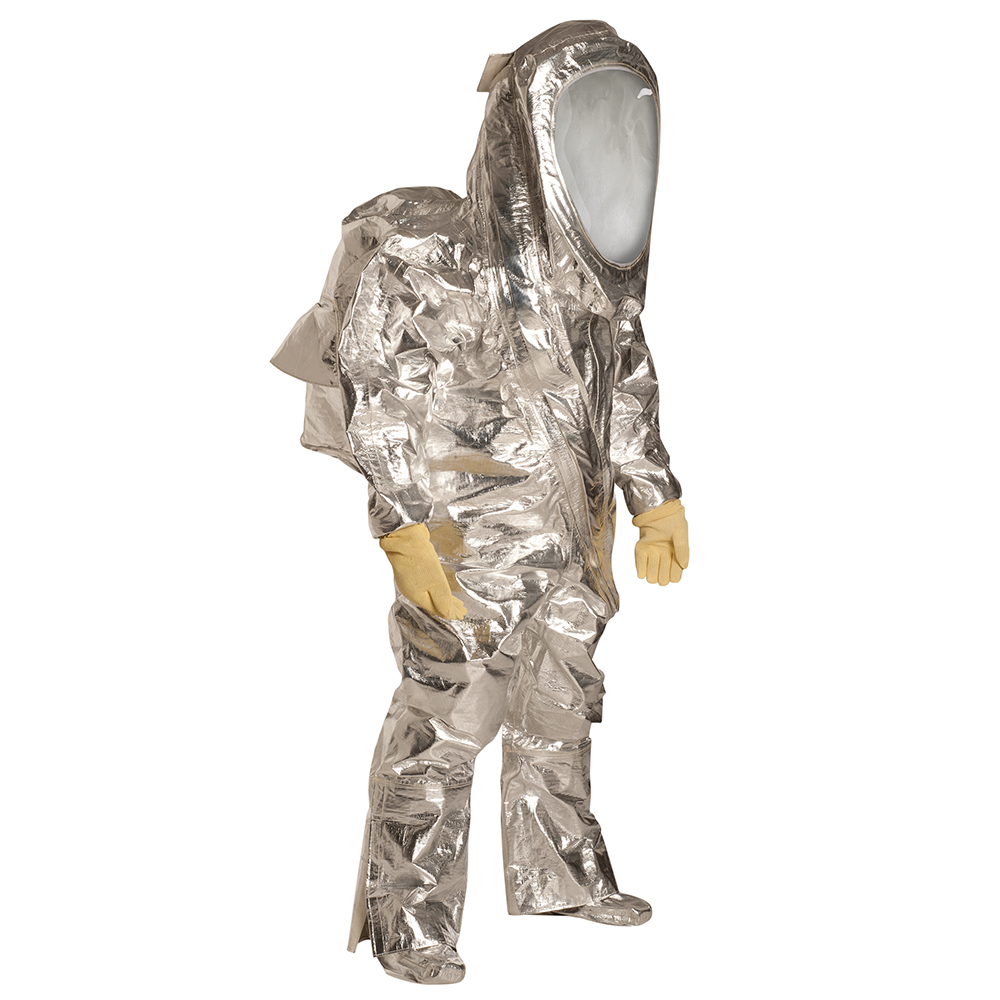

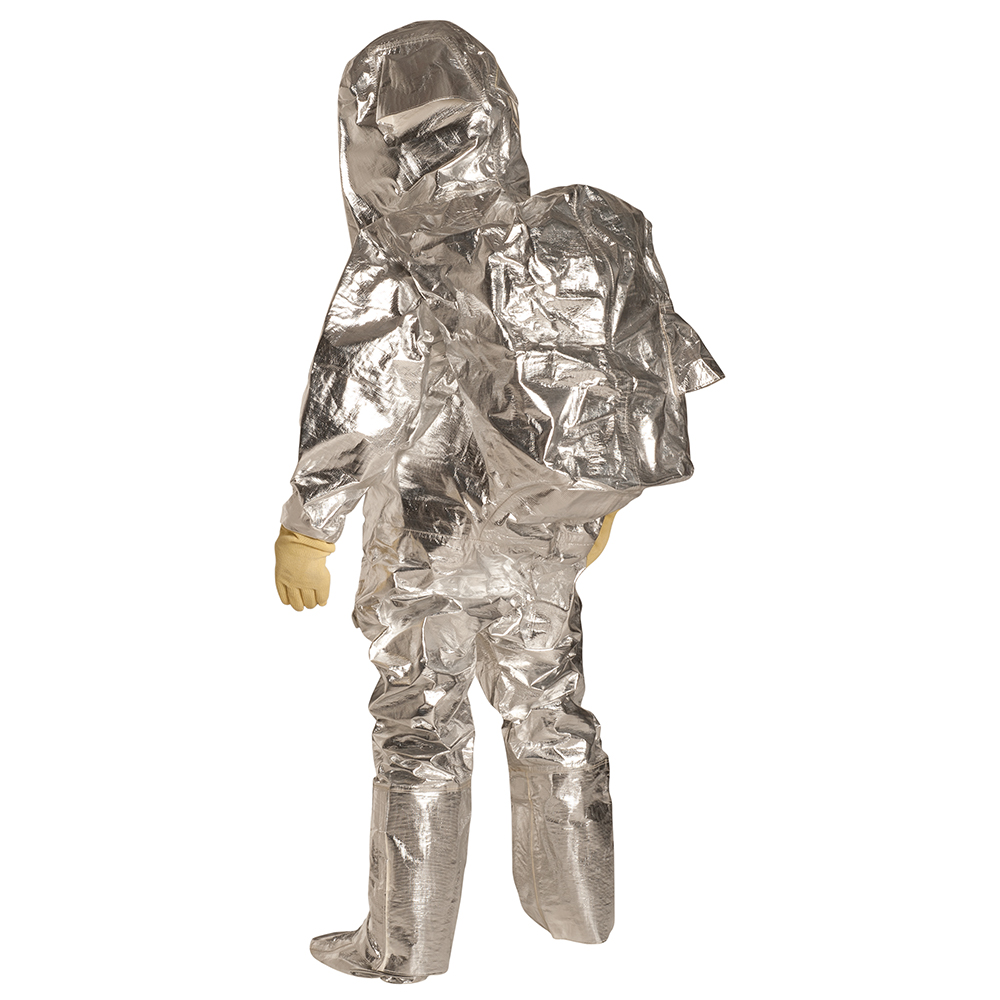

DuPont™ Tychem® 10000 FR Encapsulated Level A Suit. Certified to NFPA 1991. Expanded Back, Front Entry. 3 layers: 40 mil PVC/ 5 mil Teflon® FEP/ 40 mil PVC. Attached Dual Layer Gloves, Internal: North Silver Shield® / 4H® External: Neoprene. Separate Kevlar® Knit Over Gloves Included. Attached Socks with Outer Boot Flaps. Double Storm Flap with Hook & Loop Closure. Two Exhaust Valves. Double Taped Seams. Silver.




Hover over image to zoom
Name Description
Full Part Number RF600TSVxx0001yy (xx=size;yy=option code)  Help
Fabric / Material Tychem® 10000 FR
Design Encap. Level A, Expanded Back, Front Entry. Certified to NFPA 1991.
Seam Double Taped
Color Silver
Quantity/Box 1 per case
Sizes SM, MD, LG, XL, 2X, 3X, 4X
Option Codes 7M,7N,**,00

FEATURES & PRODUCT DETAILS

DuPont™ Tychem® 10000 FR NFPA 1991 (2016 edition) certified suits were one of the first limited-use garments to be certified to NFPA 1991 (2016 edition) in a single-skin construction. Tychem® 10000 FR garments are composed of a patented, heavy-duty aluminized fabric made of a DuPont™ Nomex®/DuPont™ Kevlar® blend laminated to a multi-layer barrier film. This unique combination of layers provides excellent physical strength and cut and abrasion protection. Ideal for industrial chemical, HazMat response and military applications including chemical warfare agents.

  • Patented design certified compliant to the 2016 edition of NFPA 1991, Standard on Vapor-Protective Ensembles for Hazardous Materials Emergencies, without requiring overgarment. Compliant with Base Requirements and Chemical Flash Fire Protection Option and Liquefied Gas Protection Option Requirements of NFPA 1991, 2016 edition. (28)
  • Encapsulated Level A garment design is our highest level of protection from liquid splash and vapor/gas exposures for both the wearer and respiratory equipment
  • Double taped seams provide strong chemical resistance against heavy liquid splashes. A sewn seam is covered, both inside and outside of garment with compatible chemical-resistant material by heat-sealing.
  • Standard width, three layer (40 mil PVC/ 5 mil Teflon® FEP/ 40 mil PVC) faceshield
  • Front entry design allows wearer to partially don garment (maintain standby position) without assistance
  • Expanded back to accommodate self-contained air breathing apparatus (SCBA)
  • Vapor tight zipper. Extra long to increase garment opening and aid donning and doffing
  • Storm flap covers zipper which can be secured by the wearer with rugged hook and loop material to prevent intrusion at zipper
  • Three component glove system: inner multi-layer laminate glove provides broad range chemical protection, middle Neoprene gloves provide mechanical and physical durability to protect inner glove and outer knit glove made of Kevlar® for abrasion and cut resistance.
  • Integrated socks composed of garment material
  • Attached flaps are designed to cover boot tops to help reduce potential for liquid intrusion
  • Two exhaust valves release higher pressure inside encapsulating garments while simultaneously helping to prevent inward leakage of external vapors or particles into the garment. One-way valves are positive pressure and open on demand. Valves include splash covers made of barrier material to help prevent liquid intrusion. Valves are located on left back of head and right lower back. (146)
  • Internal adjustable waist belt system for support and improved fit
  • Each suit has a unique serial number and is fully tested at time of manufacture including positive air pressure integrity testing per ASTM F1052.
  • Pass-thrus are optional and can be installed upon request when ordering. Some suits are available with optional pass-thrus to accommodate the following SCBA manufacturers: Scott, Interspiro, MSA, Draeger, Survivair®. Please call Customer Service 1-800-931-3456 for additional information. (3377)
  • Made in the USA, North American Free Trade Agreement (NAFTA) compliant and Trade Agreement Act (TAA) compliant

AVAILABLE OPTIONS

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

FABRIC & CHEMICAL RESISTANCE DATA

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Thickness ASTM D1777 40 mils
Basis Weight ASTM D3776 16 oz/yd2
Burst Strength - Ball ASTM D751 250 lbf
Tear Resistance - Trap Tear (MD) ASTM D5733 95 lbf
Tear Resistance - Trap Tear (CD) ASTM D5733 55 lbf
Breaking Strength - Grab (MD) ASTM D751 180 lbf
Breaking Strength - Grab (CD) ASTM D751 230 lbf
Puncture, Propagation, Tear Resistance (MD) ASTM D2582 45 lbf
Puncture, Propagation, Tear Resistance (CD) ASTM D2582 55 lbf
Wearing Apparel Flammability 16 CFR 1610 Help Class 1

CHEMICAL RESISTANCE

SPECIAL WARNINGS
