DuPont™ Tychem® 2000 SFR

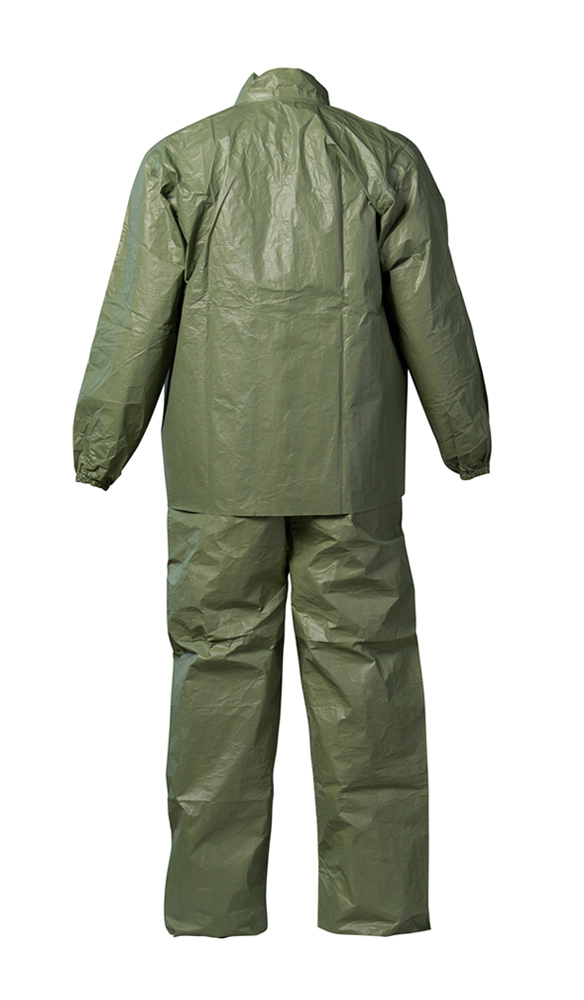

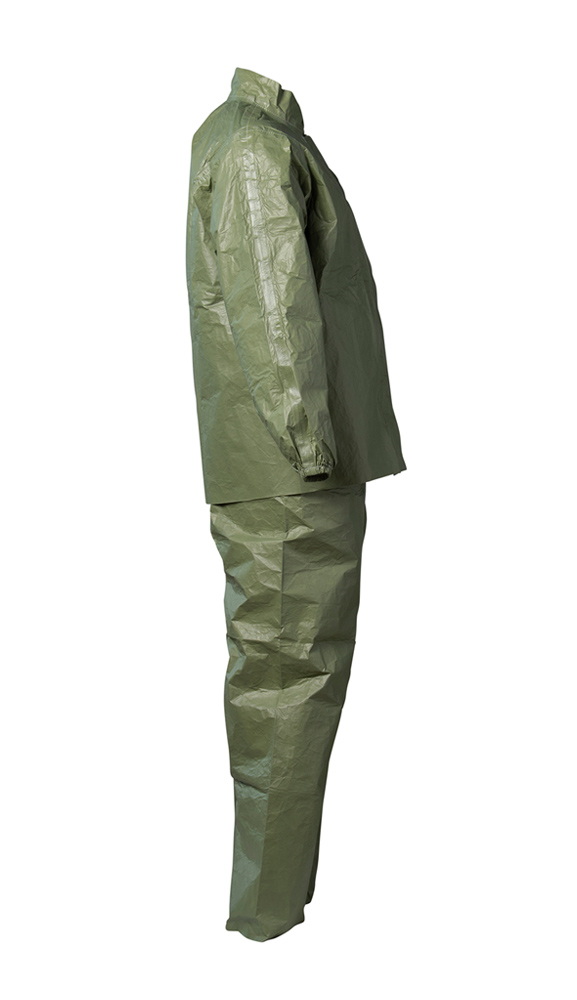

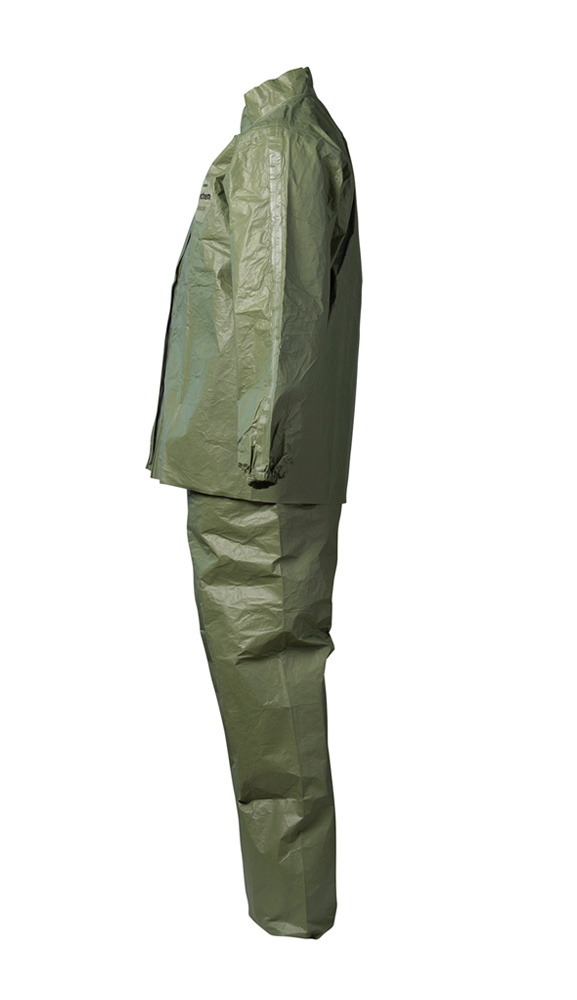

DuPont™ Tychem® 2000 SFR Bib Overall and Jacket Combo. Elastic Wrists. Open Ankles. Jacket has Double Storm Flap. Overalls have Adjustable Webbing Straps w/ Buckle Closure. Taped Seams. Green.
Tychem® 2000 SFR provides chemical and secondary flame protection in a lightweight garment. Tychem® 2000 SFR garments are intended to be worn over primary flame resistant garments. In the event that a flash fire occurs, they won't ignite and won't contribute to additional burn injury if appropriate flame-resistant personal protective equipment, such as DuPont™ Nomex®, is worn beneath.
Tychem® 2000 SFR represents a new generation of secondary flame-resistant chemical garment technology. Unlike traditional secondary flame resistant chemical garments that have been available for years, new Tychem® 2000 SFR garments were specially designed to meet dual hazard needs of a protective chemical suit with secondary flame resistance. This unique combination of performance permits Tychem® 2000 SFR garments to be worn over primary flame resistant (FR) garments like Nomex® when chemical splash and flash fire hazards exist. The fabric used in Tychem® 2000 SFR garments is a unique technology. It doesn’t char like traditional secondary flame resistant technologies. Instead, it was designed to shrink away from flame - without burning.
We engineered Tychem® 2000 SFR garments to perform well in flame engulfment scenarios. Extensive ASTM F1930 (instrumented thermal manikin) testing was conducted during the development of Tychem® 2000 SFR garments to aid in garment design and component selection. The final Tychem® 2000 SFR garment continues to demonstrate excellent performance when exposed to a fire engulfment. In fact, when tested side-by-side, Tychem® 2000 SFR garments yield a much lower predicted body burn level and much less afterflame than competing garments, including Lakeland Pyrolon® CRFR. The performance of the actual garment when exposed to a fire engulfment should be the key deciding point for selection of a secondary FR garment. Using ASTM F1930 testing for 4 seconds of flame exposure, when worn over Nomex® IIIA coverall 6oz/yd2, Tychem® 2000 SFR shows 9.3% body burn, versus Lakeland Pyrolon® which shows 28.1% body burn.
Tychem® 2000 SFR garments also provide an effective barrier against a range of inorganic acids and bases as well as industrial cleaning chemicals and particles. They're an ideal option for keeping workers safe from chemicals, while not compromising the flame protection of fire-resistance clothing worn beneath them. Applications include: refineries, petrochemical plants, laboratories, hazardous maintenance operations.
|Option Code||Description||Sizes||Part Number|

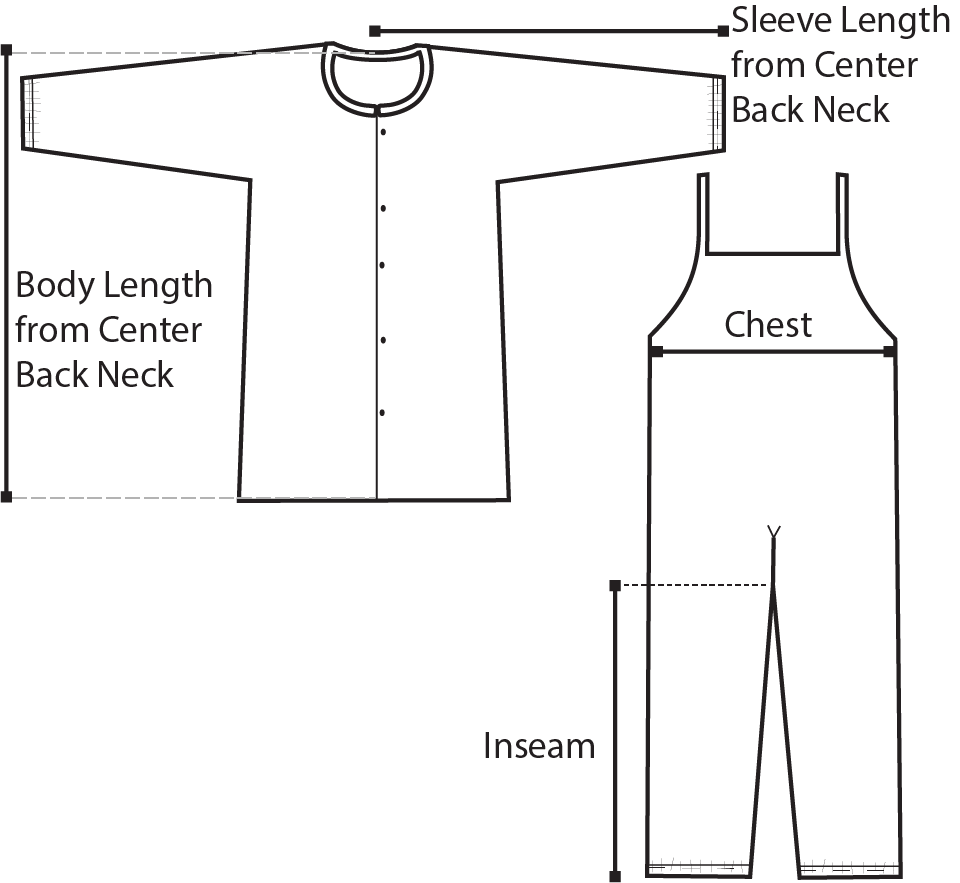

|Size||Sleeve Length||Chest Width||Inseam||Fits Chest||Fits Height||Length|
|SM||33||20 1/2||28 1/4||27 3/4 - 31 1/4||5'0" - 5'7"||29 1/2|
|MD||34||22 1/2||28 3/4||31 3/4 - 35 1/4||5'3" - 5'7"||30 1/2|
|LG||35||24 1/2||29 1/2||35 3/4 - 39 1/4||5'5" - 5'9"||31 1/2|
|XL||36 3/4||26 1/2||30||39 3/4 - 43 1/4||5'3" - 5'7"||32 1/4|
|2X||38 3/8||28 1/4||30 3/4||43 1/4 - 46 3/4||6'0" - 6'4"||33 1/4|
|3X||39 3/4||30 1/4||31 1/2||47 1/4 - 50 3/4||6'2" - 6'4"||34|
|4X||41||32||32||50 3/4 - 54 1/4||6'4" - 6'7"||35|
Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.
|Property||Test Method||Typical Result|
|Thickness (PPSH-249)||ASTM D1777||7.5 mils|
|Basis Weight||ASTM D3776||3.2 oz/yd2|
|Tear Resistance - Trap Tear (MD)||ASTM D1117||10 lbf|
|Tear Resistance - Trap Tear (CD)||ASTM D1117||8 lbf|
|Breaking Strength - Grab (MD).||ASTM D5034||39 lbf|
|Breaking Strength - Grab (CD)||ASTM D5034||41 lbf|
|Wearing Apparel Flammability||16 CFR 1610||Class 1|
|Hazard / Chemical Name||Cas Number||Phase||Normalized Break Through|
|Black Liquor (mix)||mix||Liquid||>480|
|Butadiene, 1,3- (gaseous)||106-99-0||Vapor||imm|
|Caustic soda (50%)||1310-73-2||Liquid||>480|
|Chromic acid (CrO3) (44.9%)||1333-82-0||Liquid||>480|
|Dimethyl acetamide, N,N-||127-19-5||Liquid||imm|
|Dimethyl acetamide, N,N- (8%)||127-19-5||Liquid||>480|
|Green Liquor (mix)||mix||Liquid||>480|
|Hydrochloric acid (37%)||7647-01-0||Liquid||54|
|Hydrofluoric acid (48-51%)||7664-39-3||Liquid||400|
|Hydrogen peroxide (70%)||7722-84-1||Liquid||>480|
|Lithium hydroxide (14.9%)||1310-65-2||Liquid||>480|
|Nitric acid (70%)||7697-37-2||Liquid||203|
|Potassium hydroxide (45%)||1310-58-3||Liquid||>480|
|Sodium cyanide (45%)||143-33-9||Liquid||>480|
|Sodium hydroxide (50%)||1310-73-2||Liquid||>480|
|Sodium hypochlorite (15%)||7681-52-9||Liquid||>480|
|Sulfuric acid (>95%)||7664-93-9||Liquid||>480|
|Vinyl ethylene (gaseous)||106-99-0||Vapor||imm|
