Tyvek / DuPont™ Tychem® 6000 FR

TP198T OR

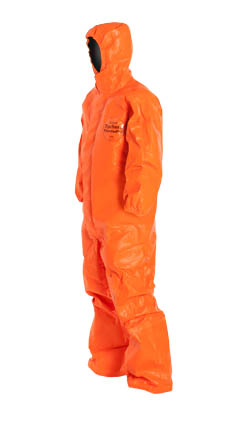

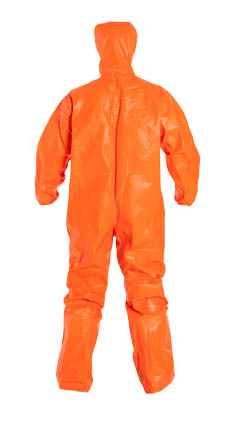

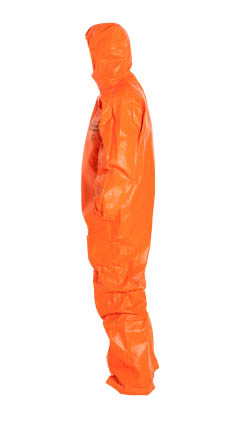

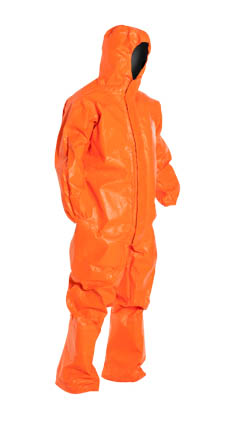

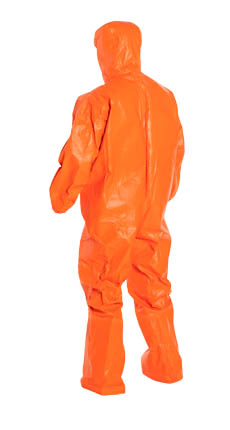

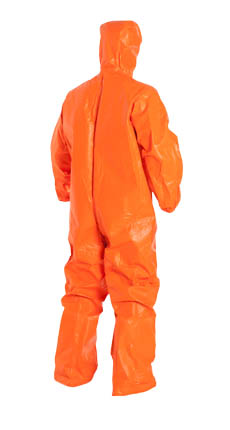

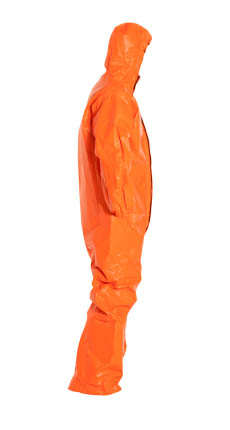

DuPont™ Tychem® 6000 FR

Effective 1H 2024, Tychem® 6000 FR is discontinued. No substitutions available.




Hover over image to zoom
Name Description
Full Part Number TP198TORxx0002yy (xx=size;yy=option code)  Help
Fabric/Materials TYCHEM® 6000FR
Design Coverall w/ Resp. Fit Hood, Elastic Wrists, Open Ankles. Certified to NFPA 1990 (NFPA 1992), 2022 edition and meets HRC 2 requirements of NFPA 70E.
Seam Taped
Color Orange
Quantity/Box 2 per case
Sizes SM, MD, LG, XL, 2X, 3X, 4X, 5X
Option Codes 00

FEATURES & PRODUCT DETAILS

Tychem® 6000 FR offers a single layer garment that provides triple hazard protection from liquid-chemical splash, flash fire and electric arc. Tychem® 6000 FR garments are designed to combine the trusted chemical protection of Tychem® and thermal/arc protection of Nomex® into a single layer garment. Tychem® 6000 FR garments are designed to help provide industrial workers and Hazmat responders with permeation protection against a broad range of toxic industrial chemicals and chemical warfare agents and to provide escape time from flash fires and protection from electric arc. Tychem® 6000 FR fabric provides at least eight hours breakthrough protection against 17 of the 21 standard ASTM F1001 chemicals and at least 30 minutes of protection for more than 180 chemical challenges including chemical warfare agents. The arc rating of Tychem® 6000 FR fabric is 15 cal/cm² Ebt. This exceeds the NFPA 70E Hazard Risk Category 2 requirement of 8 cal/cm². Typical Applications: HazMat Teams in Fire Departments, Industrial Fire Brigades, Clandestine Lab Investigation, Industrial Chemical Processing Plants, Laboratories.

  • Certified to NFPA 1990 (NFPA 1992), 2022 edition
  • Zipper features a semi-automatic locking slider allowing the puller to stay down and in a locked position
  • Taped seams provide strong chemical resistance against heavy liquid splashes. A sewn seam is covered with a strip of compatible chemical-resistant material through heat sealing.
  • Attached respirator-fit hood with drawstring to pull tightly around respirator; longer zipper extends to chin for complete coverage of neck area.
  • Storm flap covers zipper which can be secured by the wearer with rugged hook and loop material to prevent intrusion at zipper
  • Elastic opening for tighter fit at wrist
  • Open ankles, hemmed
  • Bright orange color for high visibility
  • Manufactured under specifications that do not contain natural rubber latex.
  • Made in the USA, North American Free Trade Agreement (NAFTA) compliant and Trade Agreement Act (TAA) compliant
  • Meets the U.S. industry requirements for blood (ASTM F1670) and viral penetration (ASTM F1671) protecting against several bloodborne pathogen exposure risks.

AVAILABLE OPTIONS

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

FABRIC & CHEMICAL RESISTANCE DATA

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Thickness (PPSH-249) ASTM D1117 34 mils
Basis Weight ASTM D3776 8.2 oz/yd2
Burst Strength - Ball ASTM D751 167 lbf
Tear Resistance - Trap Tear (MD) ASTM D5733 25 lbf
Tear Resistance - Trap Tear (CD) ASTM D5733 32 lbf
Breaking Strength - Grab (MD). ASTM D751 155 lbf
Breaking Strength - Grab (CD) ASTM D751 170 lbf
Wearing Apparel Flammability 16 CFR 1610 Help Class 1

CHEMICAL RESISTANCE

SPECIAL WARNINGS
