Tyvek / DuPont™ Tyvek® 800

TJ198T WH

DuPont™ Tyvek® 800

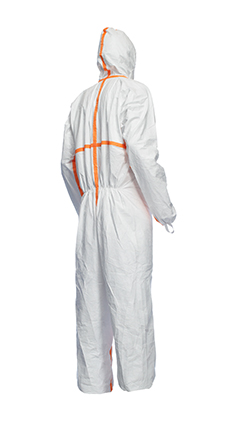

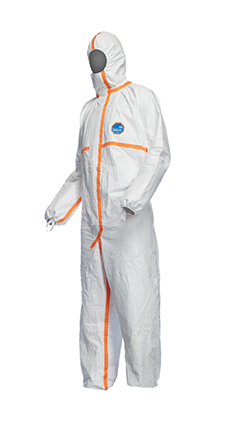

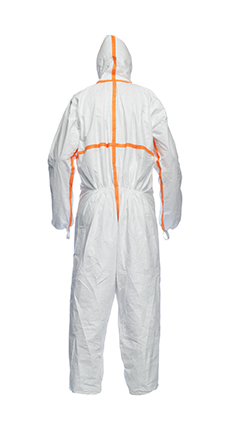

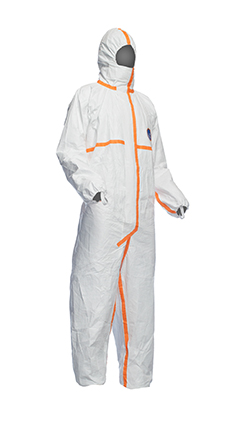

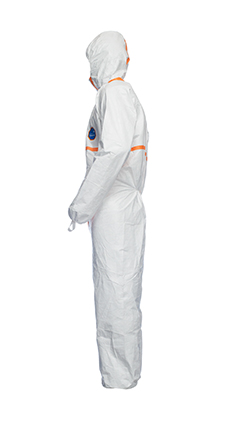

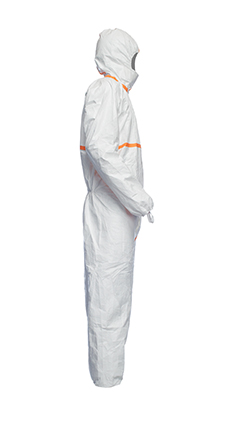

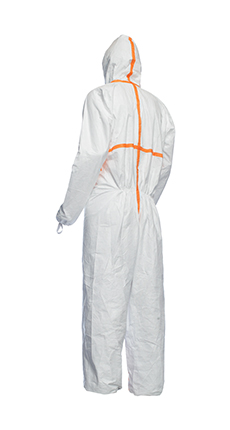

DuPont™ Tyvek® model TY800. Coverall with hood. Serged and over-taped seams. Elastic thumb loops. Elastic wrists, ankles and face. Elastic waist (glued-in). Self-adhesive Tyvek® Storm flap. Self-adhesive chin flap. Pin Lock Slider Zipper Pull. White.




Hover over image to zoom

Name Description
Full Part Number TJ198TWHxx0025yy (xx=size;yy=option code)  Help
Fabric/Materials TYVEK®
Design Hooded coverall
Seam Taped
Color White
Quantity/Box 25 per case
Sizes SM, MD, LG, XL, 2X, 3X, 4X, 5X, 6X, 7X
Option Codes PI

FEATURES & PRODUCT DETAILS

Tyvek® 800 garments combine resistance to low-concentration, water-based, inorganic chemicals (even under pressure) with the strength and durability of Tyvek® thanks to an innovative fabric technology and enhanced garment design. Developed to our highest standards, Tyvek® 800 coveralls are soft, comfortable and lightweight without compromising their level of durability. They are now available with serged and over-taped seams that provide the performance of Type 3/4/5/6 garments, which have been tested to standards against pressurized liquids, heavy liquid aerosols and airborne solid particles. The coveralls provide an effective barrier against many water-based inorganic chemicals in low concentration and particles (down to 1.0 micron in size), as well as oil repellency. Tyvek® 800 coveralls are suitable for applications such as industrial cleaning, chemical packaging and redistribution, waste treatment and disposal, and environmental remediation. Tyvek® 800 Type 3/4/5/6 coveralls offer the following safety and comfort benefits:

  • Pin locking slider locks in place when the pins on the puller are pushed into the zipper elements
  • Chemical protective clothing, Category III, Type 3-B, 4-B, 5-B and 6-B.
  • Meets the U.S. industry requirements for blood (ASTM F1670) and viral penetration (ASTM F1671) protecting against several bloodborne pathogen exposure risks.
  • Protection against infective agents (EN 14126) including resistance to penetration by blood and body fluids using synthetic blood (ISO 16603) and resistance to penetration by blood-borne pathogens using Phi-X174 bacteriophage (ISO 16604)
  • EN 1073-2 (protection against radioactive contamination)
  • Fabric and seams offer chemical permeation barrier to low concentration water-based inorganic chemicals
  • Serged and over-taped seams for protection and strength
  • Self-adhesive chin flap for tight seal of suit to the mask
  • Elastic face, wrists and ankles as well as glued-in waist elastic
  • Elastic thumb loops keep sleeves in place
  • Products made after January, 2023 are manufactured under specifications that do not contain natural rubber latex.

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

AVAILABLE OPTIONS

FABRIC & CHEMICAL RESISTANCE DATA

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Basis Weight DIN EN ISO 536 59 g/m2
Puncture Resistance EN 863 15 N
Tear Resistance - Trap Tear (MD) EN ISO 9073-4 31 N
Tear Resistance - Trap Tear (CD) EN ISO 9073-4 32 N
Tensile Strength (MD) DIN EN ISO 13934-1 93 N
Tensile Strength (XD) DIN EN ISO 13934-1 72 N
Resistance to water penetration DIN EN 20811 >25 kPa (>100 inches H2O)
Surface Resistivity (23°C / 25% RH) EN 1149-1 <2.5 x 10^9 ohms
Wearing Apparel Flammability 16 CFR 1610 Help Class 1

CHEMICAL RESISTANCE

SPECIAL WARNINGS
