DuPont™ VersaFlange™

Flashing for Non-Flanged and Brick Mold Windows and Doors


DuPont™ VersaFlange™

Flashing for Non-Flanged and Brick Mold Windows and Doors

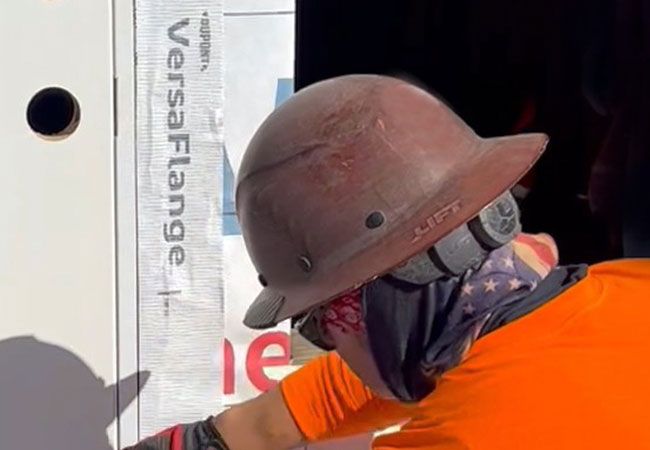

<br><b>DuPont™ VersaFlange™</b> is an innovative, self-adhered window and door flashing for non-flanged and brick mold windows and doors. It features specially designed release papers with dual-sided butyl adhesive, scored backing and a forgiving initial tack, enabling quick and easier installation. <br><br> <b>VersaFlange™</b> provides a reliable moisture seal to integrate brick mold, non-integral flanged and non-flanged windows and doors with the building envelope. Uniquely designed release papers allow <b>DuPont™ VersaFlange™</b> to tie the window or door frame directly to the sheathing or water-resistive barrier to protect from bulk water leaks and supply buildings with superior protection against the elements.







Features & Benefits





Application and Service Temperature
  • Can be installed at external temperatures as low as 25 °F (-4 °C) if the surface is clean and free from frost and ice.
  • Designed to withstand up to 9 months (270 days) of UV exposure.
High Performance Durability
  • Constructed with a durable, micro-creped DuPont™ Tyvek® top-sheet, a 100% butyl adhesive layer and a specially designed, scored release liner.
  • Tough and tear-resistant, with a forgiving initial tack allowing for the ability to reposition and correct installation mistakes.
  • Provides excellent adhesion to most common building materials.
  • Contains no asphaltic/bitumen adhesive materials which many window manufacturers prohibit due to adverse material reactions, such as black staining, oozing, and deformation over time, particularly with vinyl flanges.




Specifications





Standard Sizes

Unit Width Length Units per Case Cases per Pallet Units per Pallet
Roll 6 in. 125 ft. 4 8 32




Testing

<b>DuPont™ VersaFlange™</b> exhibits physical properties as indicated in the table below when tested as represented. Review all instructions and (Material) Safety Data Sheet ((M)SDS) before use. Please contact DuPont at 1-833-338-7668 when additional guidance is required for writing specifications that include this product.

TEST METHOD TEST TITLE PROPERTY RESULTS
AIR
ASTM E1677 Standard Specification for Air Barrier (AB) Material or Assemblies for Low-Rise Framed Building Walls Assembly Air Leakage < 0.04 cfm/ft2
(0.2 L/s • m2)
WATER
ASTM E331 Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Uniform Static Air Pressure Difference Installed System Water Intrusion Testing. NO leakage at 300 Pa
ASTM E331 Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Uniform Static Air Pressure Difference Installed System Water Intrusion Testing (after thermal aging (0-120°F) NO leakage at 300 Pa
ASTM E96 Standard Test Methods for Gravimetric Determination of Water Vapor Transmission Rate of Materials Water Vapor Permeability < 1 perm
(< 60 ng/Pa.sec.m2)
GENERAL
AAMA 711 Specification for Self-Adhering Flashing Used for Installation of Exterior Wall Fenestration Products Dupont Flashing Systems Products Meet the AAMA 711 Material Standard at the Highest Classification Levels Class A (no primer)
Level 3 Thermal Exposure
(80°C/176°F for 7 days)

Note:- *Tested in a wall assembly containing a window. Consult DuPont for primer recommendations


























FAQ

Is DuPont™ StraightFlash™ VF the same as DuPont™ VersaFlange™
Yes, StraightFlash™ VF has since been rebranded to VersaFlange™. VersaFlange™ can be used everywhere StraightFlash™ VF specified in installation literature and/or CAD details.
Is DuPont™ VersaFlange(TM) self-healing?
DuPont™ VersaFlange(TM) passes AAMA 711 Specification for Self-Adhering Flashing Used for Installation of Exterior Wall Fenestration Products Section 5.2 ' Water Penetration Resistance Around Fasteners'. 'Self-healing' flashing has the ability to recover to its original state after minor punctures/holes, while 'self-sealing' flashing can offer air and water infiltration resistance at the fastener location. DuPont(TM) VersaFlange(TM), and other DuPont Self-Adhered Flashing Products, are 'self-sealing' not 'self-healing'.
In what applications can DuPont™ VersaFlange™ be used?
VersaFlange™ can be used with non-flanged windows/doors, brick mold windows/doors and field-applied windows/doors and PTAC units. It is best suited for applications with a smooth-framed window,door, or PTAC sleeve for proper adhesion to the frame.
