Tyvek / DuPont™ Tychem® 5000

C3525T TN

DuPont™ Tychem® 5000

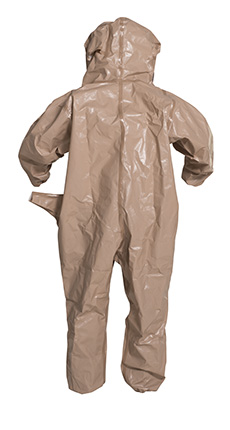

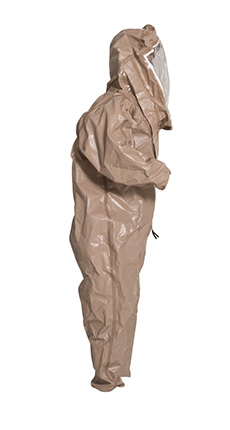

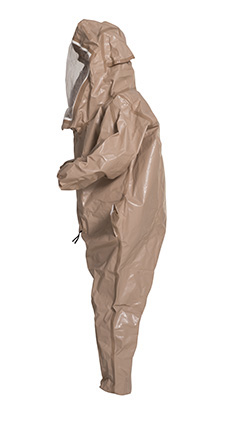

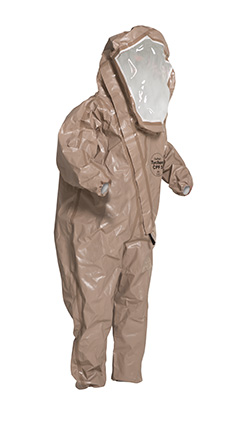

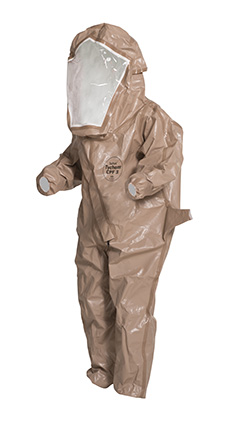

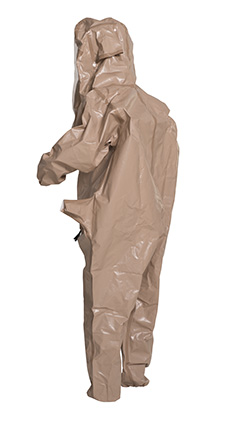

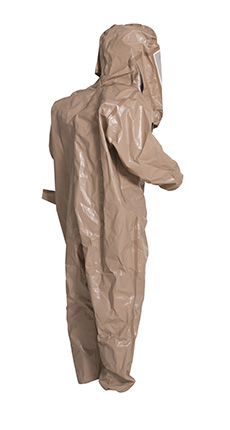

DuPont™ Tychem® 5000 Encapsulated Level B Suit. Flat Back, Front Entry. Standard Visor, 1 Layer: 20 mil PVC. Elastic Wrists. Double Storm Flap with Hook & Loop Closure. Airline Access. One Exhaust Vent. Taped Seams. Tan.




Hover over image to zoom
Name Description
Full Part Number C3525TTNxx0006yy (xx=size;yy=option code)  Help
Fabric/Materials TYCHEM® 5000
Design Encap. Level B, Flat Back, Front Entry
Seam Taped
Color Tan
Quantity/Box 6 per case
Sizes SM, MD, LG, XL, 2X, 3X, 4X
Option Codes 00

FEATURES & PRODUCT DETAILS

Tychem® 5000 fabric is composed of a multi-layer film barrier laminated to a durable 2.0 oz/yd2 polypropylene substrate. Tychem® 5000 fabric is strong and durable for rigorous activities and rugged situations involving liquid splash and provides barrier to a broad range of chemicals. Typical Applications: chemical handling, petro-chemical, hazardous materials/waste clean-up, fire departments, industrial hazmat teams, utilities, and domestic preparedness. Commonly used in domestic preparedness for situations where the potential to exposure to chemicals exist.

  • Encapsulated design provides protection from liquid splash exposure for both the wearer and respiratory equipment
  • Also provides coverage from overhead liquid splash (does not provide vapor protection)
  • Taped seams provide strong chemical resistance against heavy liquid splashes. A sewn seam is covered with a strip of compatible chemical-resistant material through heat sealing.
  • Standard 20 mil PVC faceshield
  • Front entry design allows wearer to partially don garment (maintain standby position) without assistance
  • Flat back design for use with airline
  • Storm flap covers zipper which can be secured by the wearer with rugged hook and loop material to prevent intrusion at zipper
  • Elastic opening for tighter fit at wrist
  • Manufactured under specifications that do not contain natural rubber latex.

AVAILABLE OPTIONS

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

FABRIC & CHEMICAL RESISTANCE DATA

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Thickness (PPSH-249) ASTM D1777 18 mils
Basis Weight ASTM D3776 4.4 oz/yd2
Tear Resistance - Trap Tear (MD) ASTM D5587 23 lbf
Tear Resistance - Trap Tear (CD) ASTM D5587 29 lbf
Breaking Strength - Grab (MD). ASTM D5034 68 lbf
Breaking Strength - Grab (CD) ASTM D5034 60 lbf
Wearing Apparel Flammability 16 CFR 1610 Help Class 1

CHEMICAL RESISTANCE

SPECIAL WARNINGS
