FILMTEC™ FORTILIFE™

A forward-thinking portfolio of reserve osmosis (RO) and nanofiltration (NF) membranes for the most challenging waters and applications.





Achieving success while lowering operating costs

Powered by FILMTEC™ technology, the FILMTEC™ FORTILIFE™ product family is designed for plants and facilities that need an industry-leading nanofiltration (NF) and reverse osmosis (RO) water treatment that’s reliable, easy to clean, and that would benefit from a durable, robust membrane.

FILMTEC™ FORTILIFE™ reverse osmosis (RO) and nanofiltration (NF) elements can help you:

  • Reduce water costs and lower operating expenses.
  • Achieve sustainability goals.
  • Minimize biofouling problems.

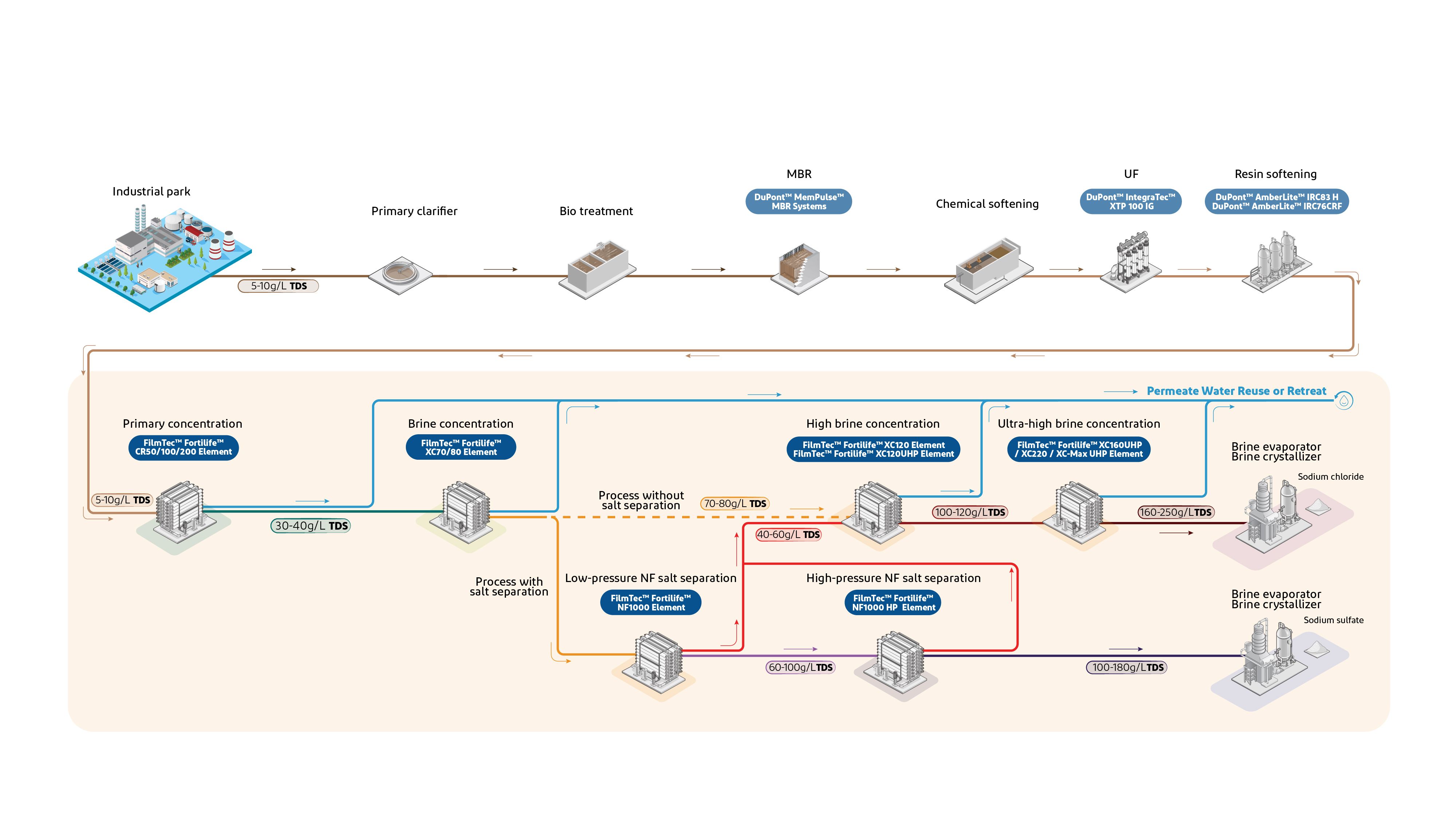

  • Move toward minimal liquid discharge (MLD).
Product Suites

Reduce cleanings, increase productivity, and decrease waste

FILMTEC™ FORTILIFE™ offers a family of elements that can be customized to create a system that meets your unique water-recovery challenges.
FILMTEC™ FORTILIFE™ CR100
FILMTEC™ FORTILIFE™ XC

Protect water systems against biofouling

FILMTEC™ FORTILIFE™ CR100 RO elements protect water systems from the effects of sporadic spikes in water contamination and seasonal changes in water composition. With advanced antifouling technology, these elements, when part of a reverse osmosis water treatment system, help avoid lengthy clean-in-place (CIP) procedures that require extended and frequent shutdowns.

The CR100 element is engineered specifically for systems where biofouling is a problem. The element’s ultra-low differential pressure (400 ft2 ) spiral-wound RO module design provides improved hydraulic balance (more even distribution of flux across all the elements in the system) that results in:

  • Less frequent cleanings, by up to 50 percent (due to biofouling).*
  • Organic fouling resistance.
  • High membrane productivity and durability; its wide pH range (1 – 13) helps stand up to harsh cleaning chemicals.
  • Lower energy costs (reduced by as much as 10 percent in operations where biofouling is a problem).*
  • Excellent solute rejection; its high permeate quality enables blending with higher TDS waters for reuse.

Meet wastewater treatment challenges with minimal liquid discharge for reuse

FILMTEC™ FORTILIFE™ XC elements help meet the specific challenges of wastewater reuse and water recovery operations. The FILMTEC™ FORTILIFE™ XC family is comprised of three products, each with its own features and benefits to help meet your wastewater challenges. The FILMTEC™ FORTILIFE™ XC70 offers an approximate total dissolved solids (TDS) treatment range (ppm)** of 15,000 – 70,000+. Its benefits include:<

  • Allowing concentrate TDS to reach >70,000 ppm level, while operating within standard RO pressure limits.
  • Fouling resistance.
  • Longer element life in challenging operations, due to construction of industrialized materials.
  •  Less frequent cleaning and more uptime.



The FILMTEC™ FORTILIFE™ XC80 offers an approximate TDS treatment range (ppm)** of 15,000 – 80,000+. Its benefits include:

  • Allowing concentrate TDS to reach >80,000 ppm level, while operating within standard RO pressure limits.
  • Fouling resistance.
  • Reduced liquid discharge with standard RO system designs.
  • Longer element life in challenging operations, due to construction of industrialized materials.
  • Less frequent cleaning and more uptime.



FILMTEC™ FORTILIFE™ XC-N offers an approximate TDS Treatment Range (ppm)** of 0 – 80,000+. Its benefits include:

  • Highly selective membrane with high monovalent ion passage and high polyvalent ion and color retention.
  • High permeability at low pressures and high TDS levels for increased recovery.
  • Purified, high-concentration brine solution for reuse.
  • Less dissolved solid waste.
  • Low energy operation.
  • FILMTEC™ FORTILIFE™ CR100+

    Protect water systems against biofouling

    FILMTEC™ FORTILIFE™ CR100 RO elements protect water systems from the effects of sporadic spikes in water contamination and seasonal changes in water composition. With advanced antifouling technology, these elements, when part of a reverse osmosis water treatment system, help avoid lengthy clean-in-place (CIP) procedures that require extended and frequent shutdowns.

    The CR100 element is engineered specifically for systems where biofouling is a problem. The element’s ultra-low differential pressure (400 ft2 ) spiral-wound RO module design provides improved hydraulic balance (more even distribution of flux across all the elements in the system) that results in:

    • Less frequent cleanings, by up to 50 percent (due to biofouling).*
    • Organic fouling resistance.
    • High membrane productivity and durability; its wide pH range (1 – 13) helps stand up to harsh cleaning chemicals.
    • Lower energy costs (reduced by as much as 10 percent in operations where biofouling is a problem).*
    • Excellent solute rejection; its high permeate quality enables blending with higher TDS waters for reuse.

  • FILMTEC™ FORTILIFE™ XC+

    Meet wastewater treatment challenges with minimal liquid discharge for reuse

    FILMTEC™ FORTILIFE™ XC elements help meet the specific challenges of wastewater reuse and water recovery operations. The FILMTEC™ FORTILIFE™ XC family is comprised of three products, each with its own features and benefits to help meet your wastewater challenges. The FILMTEC™ FORTILIFE™ XC70 offers an approximate total dissolved solids (TDS) treatment range (ppm)** of 15,000 – 70,000+. Its benefits include:<

    • Allowing concentrate TDS to reach >70,000 ppm level, while operating within standard RO pressure limits.
    • Fouling resistance.
    • Longer element life in challenging operations, due to construction of industrialized materials.
    •  Less frequent cleaning and more uptime.



    The FILMTEC™ FORTILIFE™ XC80 offers an approximate TDS treatment range (ppm)** of 15,000 – 80,000+. Its benefits include:

    • Allowing concentrate TDS to reach >80,000 ppm level, while operating within standard RO pressure limits.
    • Fouling resistance.
    • Reduced liquid discharge with standard RO system designs.
    • Longer element life in challenging operations, due to construction of industrialized materials.
    • Less frequent cleaning and more uptime.



    FILMTEC™ FORTILIFE™ XC-N offers an approximate TDS Treatment Range (ppm)** of 0 – 80,000+. Its benefits include:

    • Highly selective membrane with high monovalent ion passage and high polyvalent ion and color retention.
    • High permeability at low pressures and high TDS levels for increased recovery.
    • Purified, high-concentration brine solution for reuse.
    • Less dissolved solid waste.
    • Low energy operation.


























Related resources

Aerial view of the Guodian Hanchuan power plant complex with two cooling towers, three striped smokestacks, grassy areas, buildings, pipes and roads
FILMTEC™ FORTILIFE™ Elements Strongly Support FGD Wastewater ZLD & Crystal Salt Reclamation Project of Guodian Hanchuan Power Plant
Aerial view of the chemical manufacturing site that is part of the Shaanxi Yanchang Zhongmei Yulin energy and chemical plant in Jingbian City, Shaanxi province in northern China, with a complex array of buildings, pipes, vehicles and smokestacks emitting water vapor
FILMTEC™ FORTILIFE™ XC-N Elements Reduce the Waste Salts From ZLD Wastewater Treatment Process in The Shaanxi Yanchang Zhongmei Yulin Energy & Chemical Plant




Notes

*Depending on feedwater quality and operating conditions.

**Approximated based on the osmotic strength of NaCl. The TDS value can be higher for solutes with lower osmotic strengths, such as Na2SO4.
