Electrodeionization (EDI)

Deionizing reverse osmosis (RO) permeate with DC current.





Chemical-Free, Easy Operation and Maintenance for Reverse Osmosis Permeate Polishing

Electrodeionization (EDI) combines electrodialysis with ion exchange resins to continuously remove ionized and ionizable impurities from feedwater using DC power. EDI typically polishes reverse osmosis (RO) permeate. EDI provides an alternative to conventional mixed-bed ion exchange resins for deionized water and low end ultrapure water applications. The continuous, chemical-free process can eliminate the storage and handling of hazardous regeneration chemicals and can avoid the generation of chemical regeneration waste.

Our EDI modules optimize performance, maintain consistent product quality, and produce high-purity water for deionized water applications across industries and for UPW in solar cells, chip assembly and testing, and printed circuit boards.




Electrodeionization (EDI) details

A closer look

What Is EDI?
Using DuPont™ EDI modules
Polishing RO Permeate

Electrolysis, electrodialysis, and electrodeionization

Electrolysis involves the passage of an electrical current through an electrolyte solution, with the subsequent movement of positively and negatively charged to negative and positive electrodes. This process effectively splits water molecules, and is the driving force of electrodeionization. Electrodialysis then separates the hydroxal (OH-) and hydrogen (H+) ions from the electrolyte solution, while electrodeionization overcomes the limits of electrodialysis, allowing for ion separation without increasingly higher voltage.

The fundamental process is this: Imagine a simple model of a battery connected to two electrodes immersed in a saltwater bath. When charge is introduced on the electrodes, a reduction reaction involving the water molecules occurs at the cathode: hydrogen gas is released and OH- ions are left behind. At the anode, oxygen gas is released and H+ ions are left behind in an oxidation reaction. The presence of salt in the solution facilitates continuous reactions at the electrodes, drawing hydroxyl ions from the cathode and hydrogen ions from the anode.

In electrodialysis, electrical current drives ions across a semipermeable membrane. In an EDI system, a membrane that allows for the passage of cations (OH- ions) only is positioned next to the cathode, and a membrane permeate to anions (H+ ions) only is positioned next to the anode. A central chamber now contains the saline solution. When the electrical charge is applied to the system and the chemical reactions occur, the ions will move across the membranes out of the central chamber to their respective electrodes, leaving behind the constituents of the salt molecules and any other impurities.

Electrodialysis is limited, however. As the water becomes purer, the system’s voltage requirement increases — even exceeding 600 volts — which can cause arching. Electrodeionization resolves this challenge by introducing ion exchange (IX) resins, or ionically conductive media, into the central chamber. This allows the ions to easily migrate out of the central, dilute chamber without high voltage.

Using DuPont™ EDI modules

When installed as part of a water-treatment system, EDI modules from DuPont Water Solutions use electrical current to force a continuous migration of contaminant ions out of the feedwater and into the concentrate stream, while continuously regenerating the ion exchange resin bed with H+ and OH- ions that are derived from water splitting.

Feedwater flows through resin-filled dilute compartments, where dissolved ions are captured by the ion exchange resins. Under the influence of an applied electric field, these ions migrate through selective membranes into adjacent concentrate compartments, where they are removed from the system. At the same time, water splitting generates hydrogen (H⁺) and hydroxide (OH⁻) ions that continuously regenerate the resins, eliminating the need for chemical regeneration. As water passes through the module, dissolved impurities are continuously removed, producing a consistent stream of high-purity water suitable for deionized (DI) and ultrapure water (UPW) applications.

Conversion of carbonic and silicic acids

Electrodeionization is an effective means of polishing reverse osmosis (RO) permeate. When the permeate water enter the EDI system with the electric current applied, some of the permeate flows through the dilute chamber, where most of the cation and anions are removed. As the water become purer, the voltage differential begins to exceed 2 volts, splitting the water molecules. This creates localized areas of low pH (with H+ ions) and high pH (with OH- ions). In the areas of high pH, carbonic acid can convert to the anion bicarbonate and silicic acid to the anion bisilicate, which EDI can remove.

  • What Is EDI?+

    Electrolysis, electrodialysis, and electrodeionization

    Electrolysis involves the passage of an electrical current through an electrolyte solution, with the subsequent movement of positively and negatively charged to negative and positive electrodes. This process effectively splits water molecules, and is the driving force of electrodeionization. Electrodialysis then separates the hydroxal (OH-) and hydrogen (H+) ions from the electrolyte solution, while electrodeionization overcomes the limits of electrodialysis, allowing for ion separation without increasingly higher voltage.

    The fundamental process is this: Imagine a simple model of a battery connected to two electrodes immersed in a saltwater bath. When charge is introduced on the electrodes, a reduction reaction involving the water molecules occurs at the cathode: hydrogen gas is released and OH- ions are left behind. At the anode, oxygen gas is released and H+ ions are left behind in an oxidation reaction. The presence of salt in the solution facilitates continuous reactions at the electrodes, drawing hydroxyl ions from the cathode and hydrogen ions from the anode.

    In electrodialysis, electrical current drives ions across a semipermeable membrane. In an EDI system, a membrane that allows for the passage of cations (OH- ions) only is positioned next to the cathode, and a membrane permeate to anions (H+ ions) only is positioned next to the anode. A central chamber now contains the saline solution. When the electrical charge is applied to the system and the chemical reactions occur, the ions will move across the membranes out of the central chamber to their respective electrodes, leaving behind the constituents of the salt molecules and any other impurities.

    Electrodialysis is limited, however. As the water becomes purer, the system’s voltage requirement increases — even exceeding 600 volts — which can cause arching. Electrodeionization resolves this challenge by introducing ion exchange (IX) resins, or ionically conductive media, into the central chamber. This allows the ions to easily migrate out of the central, dilute chamber without high voltage.

  • Using DuPont™ EDI modules+

    Using DuPont™ EDI modules

    When installed as part of a water-treatment system, EDI modules from DuPont Water Solutions use electrical current to force a continuous migration of contaminant ions out of the feedwater and into the concentrate stream, while continuously regenerating the ion exchange resin bed with H+ and OH- ions that are derived from water splitting.

    Feedwater flows through resin-filled dilute compartments, where dissolved ions are captured by the ion exchange resins. Under the influence of an applied electric field, these ions migrate through selective membranes into adjacent concentrate compartments, where they are removed from the system. At the same time, water splitting generates hydrogen (H⁺) and hydroxide (OH⁻) ions that continuously regenerate the resins, eliminating the need for chemical regeneration. As water passes through the module, dissolved impurities are continuously removed, producing a consistent stream of high-purity water suitable for deionized (DI) and ultrapure water (UPW) applications.

  • Polishing RO Permeate+

    Conversion of carbonic and silicic acids

    Electrodeionization is an effective means of polishing reverse osmosis (RO) permeate. When the permeate water enter the EDI system with the electric current applied, some of the permeate flows through the dilute chamber, where most of the cation and anions are removed. As the water become purer, the voltage differential begins to exceed 2 volts, splitting the water molecules. This creates localized areas of low pH (with H+ ions) and high pH (with OH- ions). In the areas of high pH, carbonic acid can convert to the anion bicarbonate and silicic acid to the anion bisilicate, which EDI can remove.











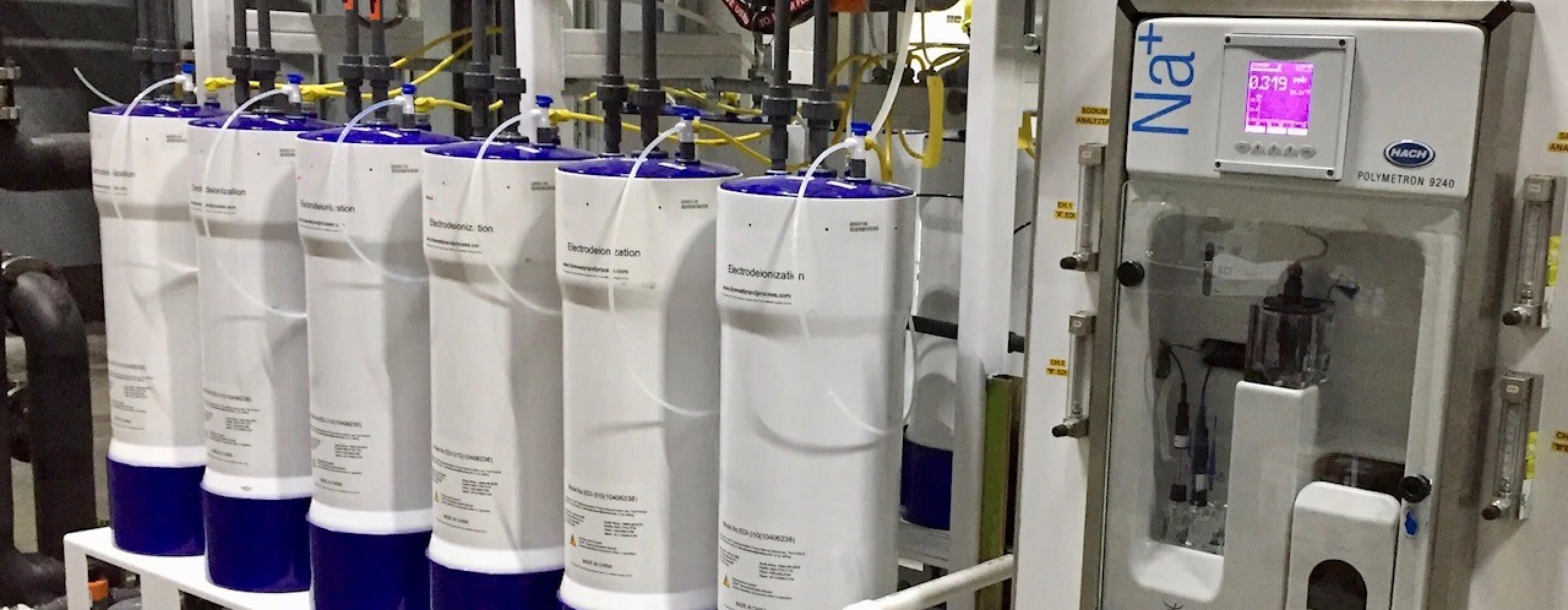

Our approach to electrodeionization





DuPont Water Solutions brings more than 20 years of experience in EDI module manufacturing. Patented spiral-wound EDI modules from DuPont feature a unique, leak-resistant design housed in a high-strength, fiberglass-reinforced plastic (FRP) pressure vessel. In response to evolving market needs, DuPont developed Plate & Frame EDI modules with increased flow rates. These modules are well suited for large-scale projects, helping reduce system footprint and simplify EDI skid design. DuPont™ EDI modules are engineered to deliver optimized performance and consistently high product-water quality. They can produce high-purity water with resistivity up to 18 MΩ·cm and up to 99% silica rejection rate.

The advantages of the DuPont™ EDI module, especially when used with two-pass reverse osmosis (RO), include:

  • Wide product portfolio: DuPont offers the industry's broadest EDI portfolio, including both spiral wound and Plate & Frame module configurations. Nominal product flow rates ranging from 2 to 8 m³/h, supporting applications from small systems to large-scale projects.



  • Optimized Core Component Selection: Leveraging decades of ion exchange resin expertise and rigorous quality control, DuPont selects premium exchange resins, membranes, and electrode materials to ensure consistent high-purity water production. Optimized core component selection helps reduce pressure drop across the dilute chamber, lower electrical resistance, mitigate the risk of hazardous gas generation, and improve overall operating efficiency.
  • Multi-technology Offering: Beyond EDI, DuPont offers industry-leading ultrafiltration (UF) and RO membranes for DI water pretreatment, along with polishing resins for UPW applications, delivering a comprehensive high-purity water solution.
  • Decades of Experience in High-Purity Water: DuPont has decades of experience in DI water and UPW applications across various industries, enabling the selection of appropriate components and design parameters for stable operation.
